Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tempat asal: | Belgia | Tipe: | Kompresor pendingin semi-kedap udara |
|---|---|---|---|
| Aplikasi: | Bagian Pendinginan | Daya kuda: | 35HP |
| Pendingin: | R404 R407C R134A | Jumlah silinder: | 6 |
| Merek: | Copeland | Catu daya: | 380-420V / 3 / 50Hz |
| Warna: | abu-abu | Jenis kompresor: | kompresor semi-kedap udara |
| berat kotor: | 375KG | ||
| Cahaya Tinggi: | kompresor kulkas,kompresor reciprocating semi hermetik |
||

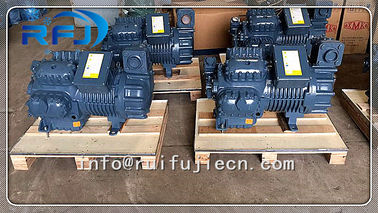

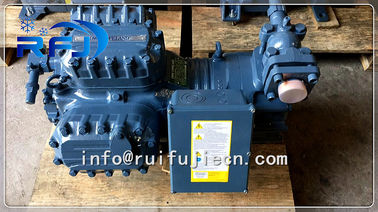

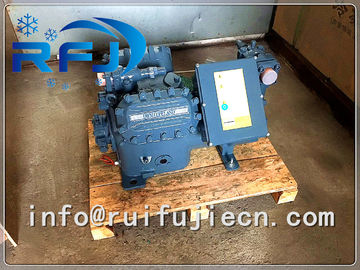

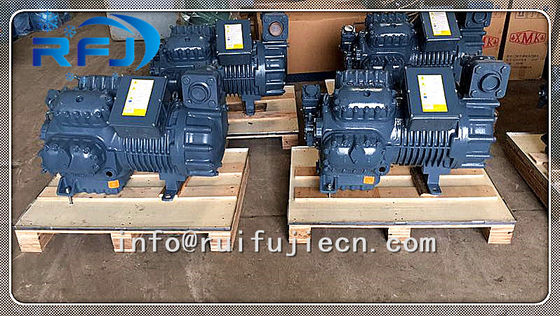

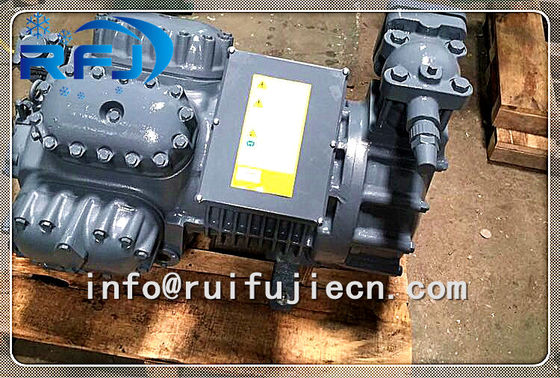

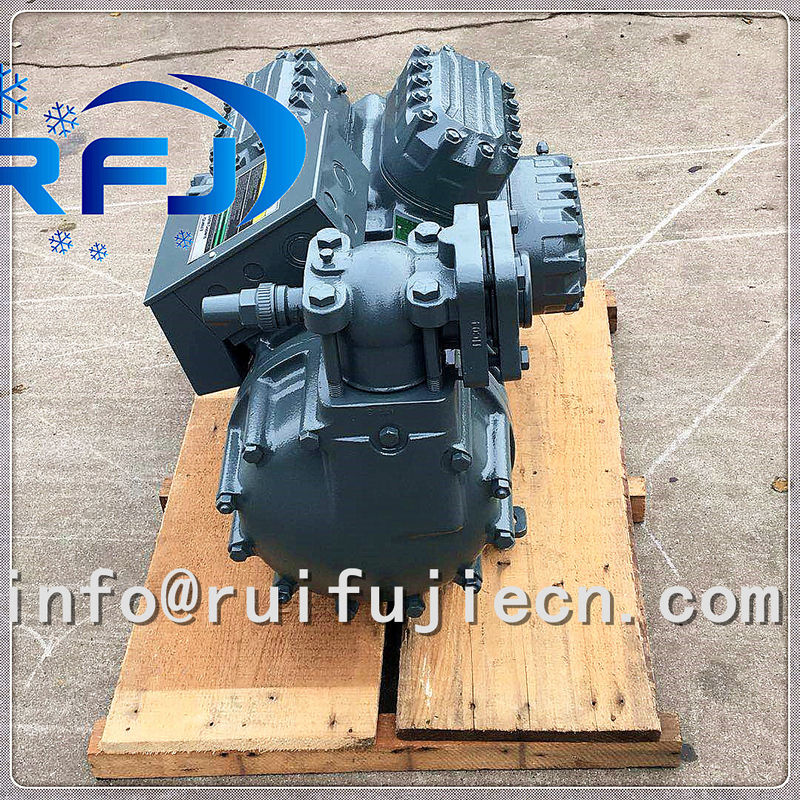

Kompresor 35HP D6DH-350X-AWM / D semi-kedap udara Copeland R314A
Data teknis
| Jumlah silinder: | 6 | |
| Perpindahan [m³ / jam]: | 151 | |
| Berat [kg]: | 347 | |
| Biaya minyak [dm³]: | 7,7 | |
| Maks. operasi saat ini [A]: | 91,6 | |
| Arus rotor yang terkunci [A]: | 444 | |
| Catu daya [V / ~ / Hz]: | 400V / 3 / 50Hz |
| milimeter | inci | ||
| Garis hisap: | 2 5/8 " | ||
| Garis debit: | 1 5/8 " |
Kapasitas pendinginan [kW]
| t c t e | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 24.08 | 32.02 | 41.35 | 52.17 | 64.57 | 78.65 | 94.48 |
| 35 | 21.87 | 29,71 | 38,92 | 49.59 | 61.80 | 75.65 | 91.24 |
| 40 | - | 27.10 | 36.17 | 46.67 | 58.68 | 72.29 | 87.61 |
| 45 | - | 24.17 | 33.08 | 43.38 | 55.17 | 68,54 | 83.56 |
| 50 | - | - | 29.61 | 39.70 | 51.26 | 64.35 | 79.08 |
| 55 | - | - | - | 35.60 | 46.90 | 59,71 | 74.11 |
| t c t e | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 15.53 | 17.90 | 20.15 | 22.21 | 24.00 | 25.46 | 26.51 |
| 35 | 15.80 | 18.46 | 21.03 | 23.42 | 25.56 | 27.38 | 28.80 |
| 40 | - | 18.85 | 21.75 | 24.49 | 27.00 | 29.20 | 31.02 |
| 45 | - | 19.02 | 22.27 | 25.38 | 28.27 | 30.87 | 33.11 |
| 50 | - | - | 22.54 | 26.04 | 29.34 | 32.36 | 35,03 |
| 55 | - | - | - | 26.42 | 30.14 | 33.61 | 36.74 |
| t c t e | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 35.56 | 38.19 | 40.81 | 43.29 | 45.51 | 47.34 | 48.65 |
| 35 | 35.86 | 38.85 | 41.87 | 44,78 | 47.45 | 49.77 | 51.61 |
| 40 | - | 39.30 | 42.75 | 46.11 | 49.28 | 52.12 | 54.50 |
| 45 | - | 39.49 | 43.38 | 47.23 | 50,92 | 54.30 | 57.26 |
| 50 | - | - | 43.70 | 48.07 | 52.29 | 56.25 | 59.82 |
| 55 | - | - | - | 48.55 | 53.35 | 57.91 | 62.12 |
| t c t e | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 539.48 | 707.15 | 900,50 | 1 120.65 | 1 368.71 | 1 645.80 | 1 953,04 |
| 35 | 510.80 | 683.24 | 881.66 | 1 107.20 | 1 360.96 | 1 644.07 | 1 957,64 |
| 40 | - | 650.52 | 854.60 | 1 086.11 | 1 346.16 | 1 635.87 | 1 956,36 |
| 45 | - | 606.85 | 817.19 | 1 055.26 | 1 322.18 | 1 619.08 | 1 947.07 |
| 50 | - | - | 767.29 | 1 012.51 | 1 286.89 | 1 591.56 | 1 927.63 |
| 55 | - | - | - | 955,73 | 1 238.16 | 1 551.18 | 1 895,93 |
| t c t e | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
| 30 | 1,55 | 1.79 | 2.05 | 2.35 | 2.69 | 3.09 | 3.56 |
| 35 | 1.38 | 1.61 | 1.85 | 2.12 | 2.42 | 2.76 | 3.17 |
| 40 | - | 1.44 | 1.66 | 1.91 | 2.17 | 2.48 | 2.82 |
| 45 | - | 1.27 | 1.49 | 1.71 | 1.95 | 2.22 | 2.52 |
| 50 | - | - | 1.31 | 1,52 | 1.75 | 1.99 | 2.26 |
| 55 | - | - | - | 1.35 | 1.56 | 1.78 | 2.02 |
| Jumlah silinder: | 6 | |
| Perpindahan [m³ / jam]: | 151 | |
| Berat [kg]: | 351 | |
| Biaya minyak [dm³]: | 7,7 | |
| Maks. operasi saat ini [A]: | 64,5 | |
| Arus rotor yang terkunci [A]: | 357 | |
| Catu daya [V / ~ / Hz]: | 380-420V / 3 / 50Hz |
| milimeter | inci | ||
| Garis hisap: | 2 5/8 " | ||
| Garis debit: | 1 5/8 " |
| WHO dapat menggunakan: | Chiller / penyimpanan dingin |
| UNTUK perpindahan apa: | 151m3 / jam |
| Jumlah silinder | 6 |
| Bobot | 375KG |
| Biaya minyak | 7.7dm3 |
| Operasi saat ini | 64.5A |
| Arus rotor terkunci | 357A |
| Sumber Daya listrik | 380-420V / 3 / 50Hz |
| Jalur hisap koneksi | 2 5/8 inci |
| Jalur pembuangan koneksi | 1 5/8 inci |
| Paket | Setiap unit dikemas dalam kotak ekspor kayu lapis |
| Pendingin | R134a |
| Ukuran (L * W * H) | 835 * 590 * 670mm |
| Waktu produksi: | 7-10 hari kerja untuk stok yang tersedia |
