Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Kemasan rincian: | Palet kayu | Refrigerant: | R404 |
|---|---|---|---|
| warna: | hitam | Daya kuda: | 1 HP |
| Volume udara (m3 / h): | 5.92 | Daya Nominal (hp): | 2hp |
| BARAT LAUT: | 23kg | G.W: | 26kg |
| Jenis: | Kompresor pendingin | Aplikasi: | Bagian Pendinginan |
| Tegangan: | 380 / 420V, 3ph, 50hz | L * W * H: | 242 * 242 * 383 |
| Sertifikasi:: | CE | ||
| Cahaya Tinggi: | copeland ac compressor,copeland a c compressor |
||

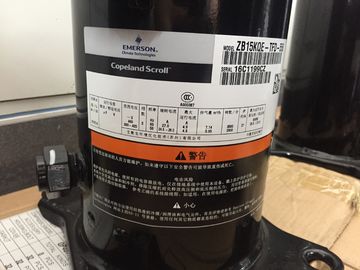

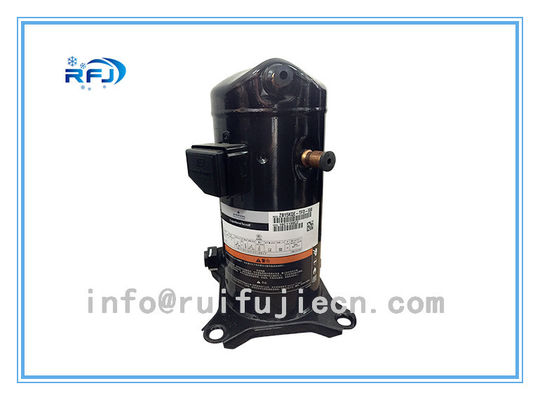

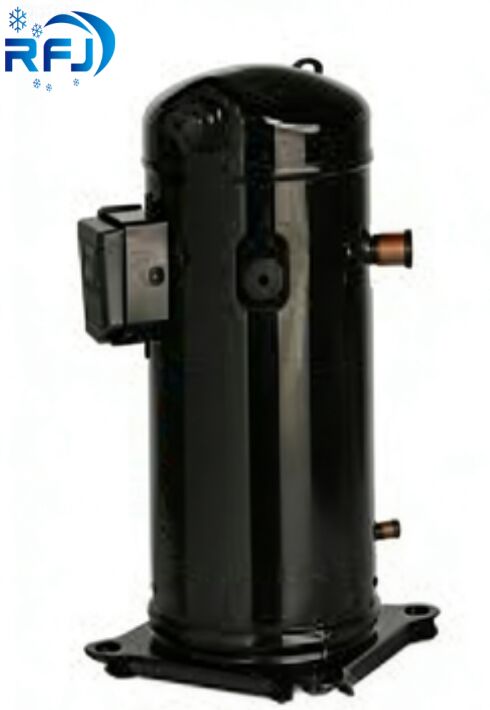

1hp ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Kopeland Kompresor pendinginan 220v R404A
Kompresor Kompresor Copeland
Itu terlihat kompak dan menyenangkan.
Fitur struktur tipe kotak dengan kompresor kedap udara.
Hasil tidak ada getaran dan noise rendah.
Mereka bisa digunakan di rumah, hotel, restoran, obat-obatan, agricutureral, industri bahan kimia di tempat lain dimana penyimpanan dingin dibutuhkan.
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | ||||||||
| Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
| Tipe motor | TFD | |||||||
| PFJ | PFJ | PFJ | PFJ | PFJ | ||||
| Daya nominal (HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
| Pemindahan (m³ / h) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
| Mulai saat ini (LRA) (Amp.) | ||||||||
| TFD | 24.5 ~ 26 | 30 ~ 32 | 36 ~ 40 | 41 ~ 46 | 50 | 58,6 ~ 65,5 | 67 ~ 74 | 101 |
| PFJ | 53 ~ 58 | 56 ~ 61 | 75 ~ 82 | 89 ~ 97 | 113 | |||
| Nilai Load Current (RLA) (Amp.) | ||||||||
| TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11,50 | 12.1 |
| PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
| Maks. Arus operasi (MCC) (Amp.) | ||||||||
| TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
| PFJ | 16 | 18 | 23 | 24 | 27 | |||
Kapasitansi operasi (Fase tunggal) | 40μF / 370V | 45μF / 370V | 50μF / 370V | 60μF / 370V | 60μF / 370V | |||
| Tenaga pemanas bak mesin (W) | 70 | |||||||
| Diameter luar adaptor (dalam.) | ||||||||
| Ukuran debit | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Ukuran Suction | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
| Dimenson (mm.) | ||||||||
| Panjang (L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
| Lebar (W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
| Tinggi (H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
| Sudut tunggal (aperture) | 190X190 (8.5) | |||||||
| Pengisian Minyak (L) | 1.18 | 1,45 | 1,45 | 1,45 | 1,36 | 1,89 | 1,89 | 1,80 |
| Berat (Kg) | ||||||||
| Berat bersih | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
| Berat kotor | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | |||||
| Model | ZB66KQ ZB66KQE | ZB76KQ ZB76KQE | ZB88KQ | ZB95KQ | ZB114KQ |
| Tipe motor | TFD | ||||
| Daya nominal (HP) | 9 | 10 | 12 | 13 | 15 |
| Pemindahan (m³ / h) | 25.7 | 28.8 | 33.2 | 36.4 | 43.4 |
| Mulai saat ini (LRA) (Amp.) | |||||
| TFD | 100 ~ 111 | 110 ~ 118 | 110 ~ 118 | 140 | 174 |
| PFJ | |||||
| Nilai Load Current (RLA) (Amp.) | |||||
| TFD | 17.3 | 19.2 | 22.1 | 22.1 | 27.1 |
| PFJ | |||||
| Maks. Arus operasi (MCC) (Amp.) | |||||
| TFD | 24.2 | 26.9 | 31 | 31 | 38 |
| PFJ | |||||
| Tenaga pemanas bak mesin (W) | 90 | ||||
| Diameter luar adaptor (dalam.) | |||||
| Ukuran debit | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| Ukuran Suction | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 |
| Dimenson (mm.) | |||||
| Panjang (L) | |||||
| Lebar (W) | 284 | 284 | 284 | 285 | 285 |
| Tinggi (H) | 546 | 546 | 546 | 552 | 553 |
| Sudut tunggal (aperture) | 190X190 (8.5) | ||||
| Pengisian Minyak (L) | 3.25 | 3.25 | 3.25 | 3.3 | 3.3 |
| Berat (Kg) | |||||
| Berat bersih | 59 | 62 | 62 | 62 | 63 |
| Berat kotor | 62 | 65 | 65 | 65 | 66 |
Tidak | Model | Qty / Pallet | Pendingin |
| 1 | ZB15KQ-PFJ-558-2HP / R22 | 16 | R22 |
| 2 | ZB15KQ-TFD-558-2HP / R22 | 16 | R22 |
| 3 | ZB21KQ-PFJ-558-3HP / R22 | 16 | R22 |
| 4 | ZB21KQ-TFD-558-3HP / R22 | 16 | R22 |
| 5 | ZB26KQ-PFJ-558-3.5HP / R22 | 16 | R22 |
| 6 | ZB26KQ-TFD-558-3.5HP / R22 | 16 | R22 |
| 7 | ZB29KQ-TFD-558-4HP / R22 | 16 | R22 |
| 8 | ZB38KQ-TFD-558-5HP / R22 | 16 | R22 |
| 9 | ZB45KQ-TFD-558-6HP / R22 | 16 | R22 |
| 10 | ZB48KQ-TFD-558-7HP / R22 | 16 | R22 |
| 11 | ZB58KQ-TFD-551-8HP / R22 | 12 | R22 |
| 12 | ZB66KQ-TFD-551-9HP / R22 | 12 | R22 |
| 13 | ZB76KQ-TFD-551-10HP / R22 | 12 | R22 |
| 14 | ZB88KQ-TFD-551-12HP / R22 | 12 | R22 |
| 15 | ZB114KQ-TFD-551-15HP / R22 | 12 | R22 |
| 16 | ZB15KQE-PFJ-558-2HP / R404 | 16 | R404 |
| 17 | ZB15KQE-TFD-558-2HP / R404 | 16 | R404 |
| 18 | ZB19KQE-PFJ-558-2.5HP / R404 | 16 | R404 |
| 19 | ZB19KQE-TFD-558-2.5HP / R404 | 16 | R404 |
| 20 | ZB21KQE-PFJ-558-3HP | 16 | R404 |
| 21 | ZB21KQE-TFD-558-3HP | 16 | R404 |
| 22 | ZB26KQE-TFD-558-3.5HP | 16 | R404 |
| 23 | ZB26KQE-PFJ-558-3.5HP | 16 | R404 |
| 24 | ZB29KQE-TFD-558-4HP | 16 | R404 |
| 25 | ZB38KQE-TFD-558-5HP | 16 | R404 |
| 26 | ZB45KQE-TFD-558-6HP | 16 | R404 |
| 27 | ZB48KQE-TFD-558-7HP | 16 | R404 |
| 28 | ZB58KQE-TFD-551-8HP | 12 | R404 |
| 29 | ZB66KQE-TFD-551-9HP | 12 | R404 |
| 30 | ZB76KQE-TFD-551-10HP | 12 | R404 |
| ZB series 220V / 1PH / 50HZ R404A copeland refrigeration compressor ZB15KQE-PFJ-558 | |
| Merek | COPELAND |
| Model | ZB15KQE-PFJ-558 |
| Kapasitas produksi | 3000 Piece / Pieces per Bulan |
| Pendingin | R404 |
| Warna | Hitam |
| MOQ | 5 |
| Kekuatan kuda | 16hp |
| Paket | Kotak kayu |
| pengiriman | Dalam 2 minggu |
| Sertifikat | VDE, TUV, UL, ROHS dan CE |
| Model nomor. | Suhu Cindensate | Suhu Penguapan C (R22 / 50HZ) | |||||
| -12 | -10 | -5 | 0 | 5 | 10 | ||
| ZB15KQ | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 |
| ZB19KQ | 40 | 3650 | 3950 | 4850 | 5850 | 7000 | 8300 |
| ZB21KQ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 |
| ZB26KQ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 |
| ZB29KQ | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14070 |
| ZB38KQ | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 |
| ZB45KQ | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 |
| ZB48KQ | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 |
| ZB58KQ | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 |
| ZB66KQ | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 |
| ZB76KQ | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 |
| ZB88KQ | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 |
| ZB95KQ | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 |
| ZB114KQ | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 |
