| Nama merek: | Copeland |
| Nomor Model: | ZR108KC-TFD-522 |
| Moq: | Bagian 1 |
| harga: | discussed |
| Waktu Pengiriman: | 3-5 hari |
| Ketentuan Pembayaran: | T/T, Western Union, MoneyGram |

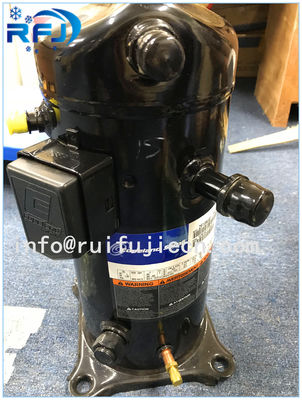

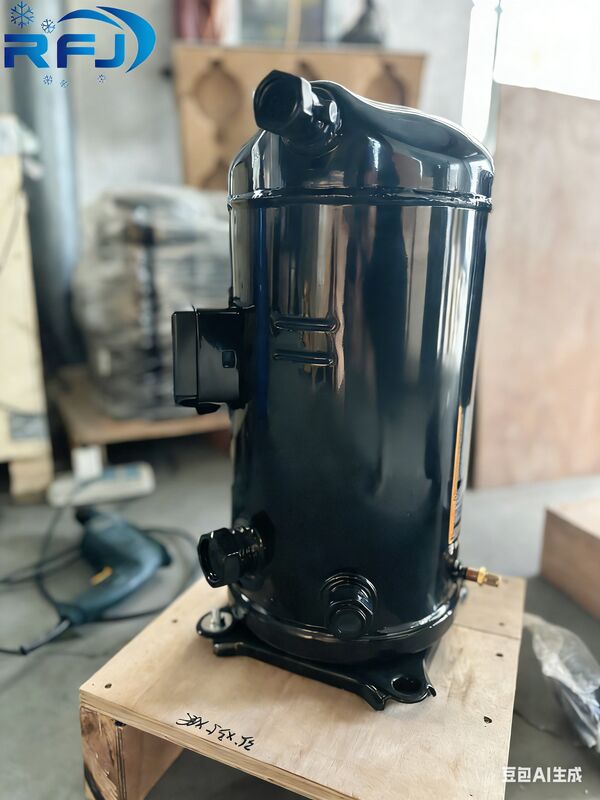

Copeland gulir kompresor ZR108KC-TFD-522
1. Kompresor Copeland ZR36K3-TFD-522 memiliki efisiensi energi yang sangat tinggi .
2. Kapasitas Pompa Panas Tinggi Karena Efisiensi Volumetrik Hampir 100%.
3. Wide Selection Range
50 Hertz 18200 sampai 68000 BTUH
4590 sampai 17.100 KCALH
5330 sampai 19900 WATTS.
4. Bagian Bergerak Lebih Sedikit
5. Motor secara efektif dapat melindungi motor dari kerusakan suhu tinggi dan arus tegangan tinggi, kebisingan rendah nilai impuls knalpot rendah lebih rendah dari piston kompresor 5 dB.
6. Desain yang kokoh dan Daya Tahan Terbukti.
7. Fitur Start Unloaded Membutuhkan No Start Capacitors
8. Tabung Suction Lurus Memungkinkan Aplikasi Profil Rendah
9. Peningkatan Performa sebagai Scroll Sets Wear-In
10. Perlindungan Motor Internal dengan Perlindungan Start Winding pada Model Fase Tunggal
| Model | Tekanan kuda (HP) | Kapasitas (w) | Daya masuk (kw) | Input arus (A) | Ukuran dasar (mm) | Berat (kg) | Tinggi (mm) |
| R22 | |||||||
| ZR24K3-TFD-522 | 2 | 5920 | 1,87 | 4.3 | 190 | 25.9 | 383 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 190 | 26.3 | 383 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 190 | 28 | 406 |
| ZR36K3-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 190 | 28 | 406 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 190 | 28.6 | 419 |
| ZR47KC-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 190 | 28.6 | 436 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 190 | 35.4 | 457 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 190 | 35.4 | 457 |
| ZR61KC-TFD-522 | 5 | 14600 | 4.43 | 10 | 190 | 35.8 | 457 |
| ZR68KC-TFD-522 | 5.8 | 16400 | 4,97 | 12.1 | 190 | 38.1 | 457 |
| ZR72KC-TFD-522 | 6 | 17400 | 5.25 | 12.1 | 190 | 38.1 | 457 |
| ZR81KC-TFD-522 | 6.8 | 19690 | 5.83 | 15 | 190 | 40.9 | 462 |
| ZR84KC-TFD-522 | 7 | 20330 | 6.14 | 15 | 190 | 56.7 | 497 |
| ZR94KC-TFD-522 | 8 | 22940 | 7 | 16.4 | 190 | 58 | 497 |
| ZR108KC-TFD-522 | 9 | 26250 | 7.83 | 17.3 | 190 | 63 | 552 |
| ZR125KC-TFD-522 | 10 | 30470 | 9.06 | 19.2 | 190 | 63 | 552 |
| ZR144KC-TFD-522 | 12 | 34730 | 10.87 | 19.6 | 190 | 63 | 552 |
| ZR160KC-TFD-522 | 13.33 | 37330 | 11.17 | 25 | 220 | 98 | 553 |
| ZR190KC-TFD-522 | 15.8 | 45170 | 13.4 | 27.2 | 220 | 112 | 598 |
| ZR11M3-TWD-551 | 9 | 25840 | 7.8 | 17.8 | 220 | 91 | 553 |
| ZR12M3-TWD-551 | 10 | 29890 | 8.95 | 17.9 | 220 | 92 | 553 |
| ZR16M3-TWD-551 | 13 | 37330 | 11.17 | 25 | 220 | 98 | 553 |
| ZR19M3-TWD-522 | 15 | 45170 | 13.4 | 27.2 | 220 | 112 | 598 |
| ZR250KC-TWD-522 | 20 | 60000 | 17.7 | 34 | 142 | 736 | |
| ZR310KC-TWD-522 | 25 | 74000 | 22 | 41.4 | 160 | 734 | |
| ZR380KC-TWD-522 | 30 | 92000 | 26.9 | 62.5 | 176 | 734 |
