Paket: | 16 pcs / palet | Aplikasi: | Sistem HVAC |
---|---|---|---|
Tenaga motor nominal: | 2hp | Arus rotor terkunci: | 26A |
moc: | 5A | Pemindahan: | 7.1m³ / jam |
Cahaya Tinggi: | gulir kompresor pendingin,kompresor pendingin copeland |

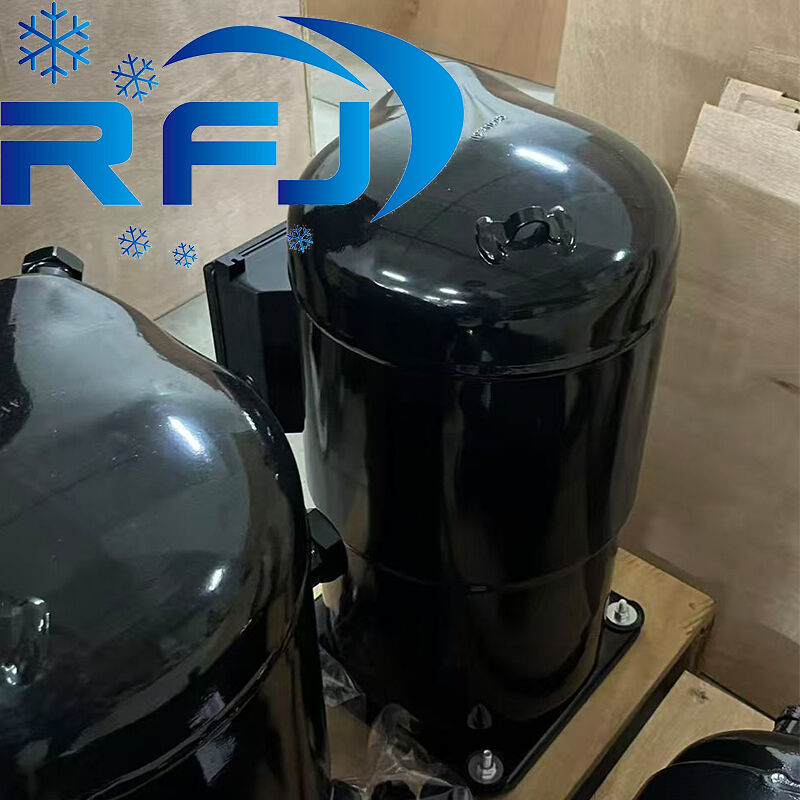

Rendah Suhu Copeland Scroll Compressor ZF06KQE-TFD-551 untuk minyak Pendingin POE
Deskripsi Produk:
ZF Series Copeland Scroll Compressor
Model NO .: ZF06KQE-TFD-551 2HP
Sistem Pendinginan: Pendingin Udara
Posisi Silinder: Vertikal
Level Kompres: Satu-Tahap
Performa: Kebisingan Rendah
Mode Drive: Elektromagnetik
Sumber Daya: Daya AC
Bisu: Bisu
Paket Transportasi: Pallet
Asal: China
Data teknis:
Tenaga motor nominal [HP]: 2
Perpindahan [m³ / jam]: 7.1
Berat [kg]: 25
Pengisian oli [dm³]: 1.3
Data listrik:
Catu daya [V / ~ / Hz]: 380-420V / 3 / 50Hz, 460V / 3 / 60Hz
Arus rotor terkunci [A]: 26
Max. Maks. operating current [A]: 5 operasi saat ini [A]: 5
Resistance berliku [Ω]: 7.15
Koneksi:
Garis hisap: 1/4 "
Garis debit: 1 "
Model | ZF06KQE-TFD-551 |
Aplikasi | Refrigeartion |
MOQ | 1 SET |
Berat kotor | 25kg |
Demin kotor | 40 * 40 * 70cm |
The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. Rentang gulir baru mencakup 6 model dari 4 hingga 15 HP dan dirancang untuk menawarkan tingkat efisiensi tinggi pada suhu penguapan rendah dengan R404A dan R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Ini adalah pilihan ideal untuk unit kondensasi, rak paralel dan sistem pendingin terdistribusi. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. Copeland Scroll dengan Vapor Injection Siklus kompresor scroll ZF * KVE mirip dengan siklus dua tahap dengan pendinginan antar bagian tetapi dengan satu kompresor tunggal. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. Tahap tinggi terdiri dari mengekstraksi sebagian cairan kondensor dan mengembangkannya melalui katup ekspansi ke penukar panas yang bertindak sebagai subkooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. Uap super panas kemudian disuntikkan ke port perantara dalam kompresor gulir. The additional subcooling increases evaporator capacity. Subkooling tambahan meningkatkan kapasitas evaporator.
