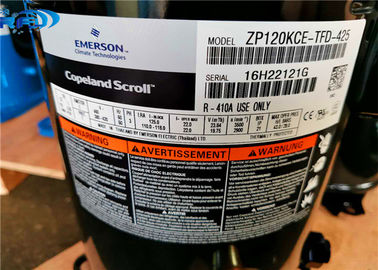

Scroll Refrigeration Compressors Copeland ZP120KCE TFD 425
Technical data
Displacement [m³/h]: 19,8
Sound power [dBA]: 74
Sound pressure level [dB]: 63
Net Weight [kg]: 61,0
Gross Weight [kg]: 72
Oil charge [dm³]: 3,3
Maximum high pressure [bar]: 45
Maximum standstill pressure [bar]: 29,5
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 50
PED category: 2
Electrical data
Power supply [V/~/Hz]: 380-420V/3/50Hz
Locked rotor current [A]: 118,0
Max. operating current [A]: 22,0
Winding resistance [Ω]: 1,2
Connections
inches
Suction connection with supplied sleeve: 1 3/8"
Discharge connection with supplied sleeve: 7/8"
| Product name |
Refrigeration Compressor |
| Application |
HVAC |
| Compressor model |
ZP120KCE-TFD-425 |
| MOQ |
1 Set |
| Refrigerant |
R410A |
FAQ
1,What is your MOQ?
Our MOQ is usually 1 set.
2,Shipping methods and lead time
By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).
By Air: 7-10 working days to your airport.
By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.
Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).
3,What is your payment terms?
TT/WESTERN UNION
4, What are the main products?
Semi-hermetic compressor
Hermetic Compressor
Refrigeration Compressor Unit
5, Packaging & Shiping
Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.
