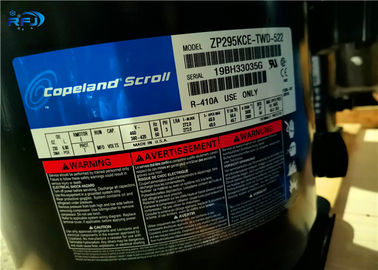

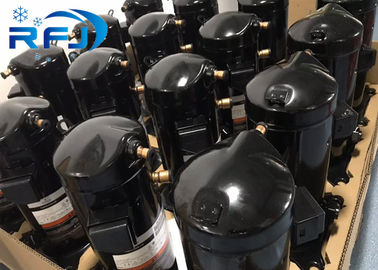

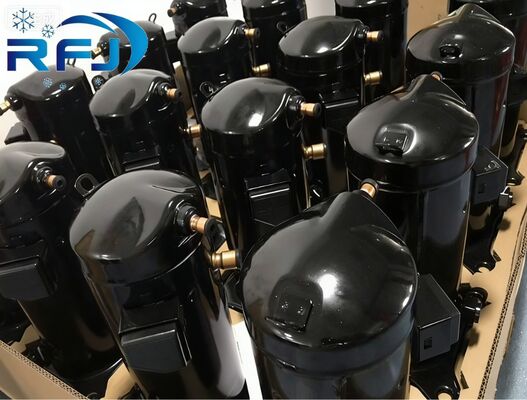

Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration

Name: Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZP295KCE-TWD-522
Price: 253.00 USD
Availability: InStock

Nama merek:	Copeland
Nomor Model:	ZP295KCE-TWD-522
Moq:	1 potong
harga:	discussed
Waktu Pengiriman:	7-10 hari kerja setelah menerima pembayaran
Ketentuan Pembayaran:	T / T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

Pendingin:

Freon

Jenis Refrigerant:

R410 A atau tipe lainnya

kW pada + 10ºC / + 40ºC:

86.9

kW pada 0ºC / + 40ºC:

61.6

kW pada -5ºC / + 40ºC:

51.3

kW pada -10ºC / + 40ºC:

42.4

Kemasan rincian:

paket kayu

Menyediakan kemampuan:

1000000 lembar / tahun

Menyoroti:

Kompresor Ac Copeland

Kompresor Gulir Pendingin

Deskripsi Produk

Copeland ZP Series ZP295KCE-TWD-522 for Refrigeration

Specifications

Brand: Copeland

Model: ZP295KCE-TWD-522

Refrigerant: Freon

Refrigerant type: R410 A or other types

kW at +10ºC/+40ºC: 86,9

kW at 0ºC/+40ºC: 61,6

kW at -5ºC/+40ºC: 51,3

kW at -10ºC/+40ºC: 42,4

Weight in kg: 160 kg.

Sizes: 450x380x720 mm (LxWxH)

Technical data

Displacement [m³/h]: 46,7

Sound power [dBA]: 85

Sound pressure level [dB]: 74

Net Weight [kg]: 160,0

Gross Weight [kg]: 188

Oil charge [dm³]: 6,8

Maximum high pressure [bar]: 45

Maximum standstill pressure [bar]: 29,5

Minimal lowside temperature [°C]: -35

Maximum lowside temperature [°C]: 50

PED category: 2

Electrical data

Power supply [V/~/Hz]: 380-420V/3/50Hz

Locked rotor current [A]: 272,0

Max. operating current [A]: 48,5

Winding resistance [Ω]: 0,5

Product name	Refrigeration Compressor
Application	HVAC
Compressor model	ZP295KCE-TWD-522
MOQ	1 Set
Refrigerant	R410A

FAQ

1,What is your MOQ?

Our MOQ is usually 1 set.

2,Shipping methods and lead time

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

3,What is your payment terms?

TT/WESTERN UNION

4, What are the main products?

Semi-hermetic compressor

Hermetic Compressor

Refrigeration Compressor Unit

5, Packaging & Shiping

Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.

Tag:

kompresor pendingin komersial

copeland ac compressor

Kompresor Ac Copeland
