| Nama merek: | copeland |
| Nomor Model: | ZB95KQE-TFD |
| Moq: | 1 |
| harga: | discussed |
| Waktu Pengiriman: | 1-5 hari |
| Ketentuan Pembayaran: | T / T, D / A |
1. Fitur dan aplikasi produk
Aplikasi Tegangan Frekuensi Refrigerant Freq (Hz)
R-404A HFC 60 3 460 Suhu Sedang
R-507 HFC 60 3 460
R-507 HFC 50 3 380/420
2. Rincian produksi

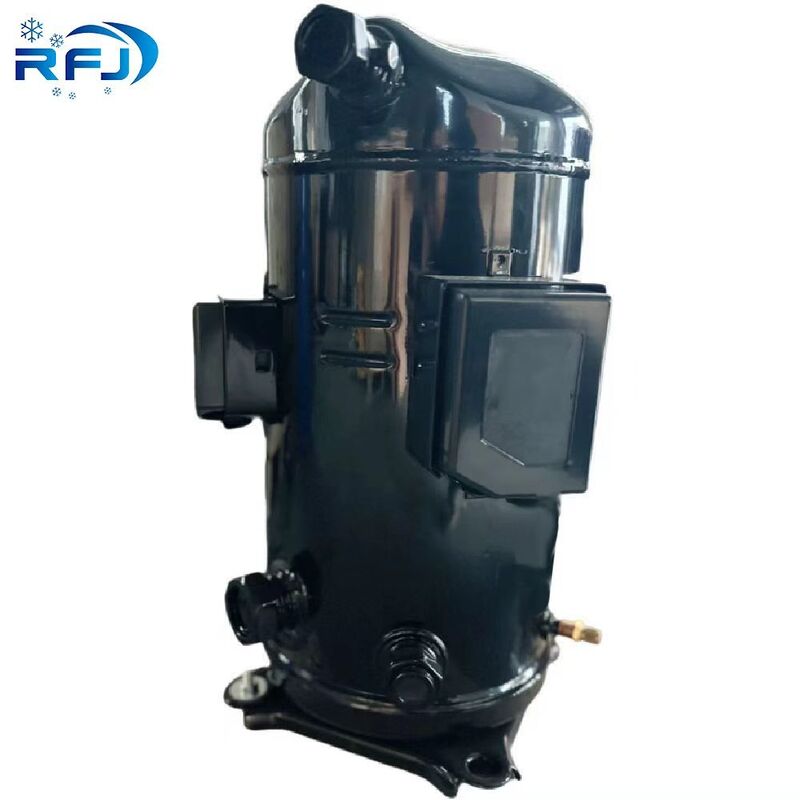

| Spesifikasi | Kompresor Copeland ZB95KQE-TFD-551 |
| Kapasitas (Btu / jam) | 77900 |
| Kekuatan (w) | 11650 |
| Saat ini (a) | 20.85 |
| EER | 6.70 |
| Aliran massa (lbs / wh) | 1645 |
| Berat (lbs) | 143 |
| Pendingin | R404A |
Model dekripsi ZB95KQE-TFD-551:
1. Perkenalan produk
1) Bekerja refrigeran R404.
2) Banyak digunakan di bidang pendingin suhu menengah.
3) 380v / 3ph / 50 hz
4) kekuatan kuda:13HP
5) Koneksi sekrup, dengan katup pengisian.
2. Parameter produk (Spesifikasi)
R22.50HZ
| Model nomor | Suhu Cindensate | Suhu penguapan ℃ (R22 / 50HZ) | Set / Pallet | |||||
| -12 | -10 | -5 | 0 | 5 | 10 | |||
| ZB15KQ-PFJ | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 | 16 |
| ZB21KQ-PFJ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 | 16 |
| ZB26KQ-PFJ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 | 16 |
| ZB15KQ-TFD | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 | 16 |
| ZB21KQ-TFD | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 | 16 |
| ZB26KQ-TFD | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 14070 | 16 |
| ZB29KQ-TFD | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14400 | 16 |
| ZB38KQ-TFD | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 | 16 |
| ZB45KQ-TFD | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 | 16 |
| ZB48KQ-TFD | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 | 16 |
| ZB50KQ-TFD | 40 | 10600 | 11660 | 14350 | 17400 | 20800 | 24700 | 12 |
| ZB58KQ-TFD | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 | 12 |
| ZB66KQ-TFD | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 | 12 |
| ZB76KQ-TFD | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 | 12 |
| ZB88KQ-TFD | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 | 12 |
| ZB95KQ-TFD | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 | 12 |
| ZB114KQ-TFD | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 | 12 |
