| Nama merek: | copeland |
| Nomor Model: | ZF15KQE-TFD-551 |
| Moq: | 1 |
| harga: | discussed |
| Waktu Pengiriman: | 1-5 hari |
| Ketentuan Pembayaran: | T / T, D / A |

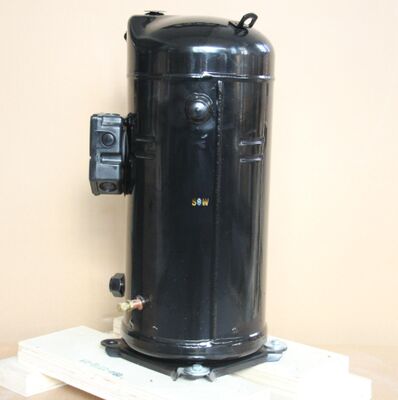

| Model | ZF15KQE-TFD-551 |
| Merek | Copeland |
| Kekuasaan | 380-420V / 3 / 50Hz 460V / 3 / 60Hz |
| Pemindahan | 14,4m³ / jam |
| Pengisian oli | 1.77L |
| Tenaga Kuda | 5HP |
| Pendingin | R404 |
| Paket | 16 buah / palet |
| Max.operasi saat ini [A] | 10 |
| Arus rotor terkunci [A] | 64 |
| Sistem pendingin | Pendingin Udara |
| Posisi Silinder | Vertikal |
| Tingkat Kompres | Satu-Tahap |
| Performa | Kebisingan Rendah |
| Mode Berkendara | Elektromagnetik |
Berbagai Produk: -
| Model nomor. | Volt / Fase Pasokan Listrik | Perpindahan m³ / jam | R404A Kapasitas Watt @ -25 ° C SST | Jenis Koneksi | Ukuran Koneksi: inci | Pengisian Oli Pengganti: Ltrs | Amp | Resistensi Berliku Ohm | Berat: kg | ||
| Pengisapan | Melepaskan | Nilai Beban Amps | Amps Rotor Terkunci | ||||||||
| ZF09K4E-TFD-551 | 415/3 | 8 | 2950 | Rotalock | 1 1/4 | 1 | 1.1 | 6 | 40 | 4.83 | 30 |
| ZF11K4E-TFD-551 | 415/3 | 9.9 | 3700 | Rotalock | 1 1/4 | 1 | 1.1 | 7 | 46 | 4.03 | 31 |
| ZF13K4E-TFD-551 | 415/3 | 11.8 | 4300 | Rotalock | 1 1/4 | 1 | 1.4 | 8 | 51.5 | 3.64 | 41 |
| ZF15K4E-TFD-551 | 415/3 | 14.5 | 5250 | Rotalock | 1 1/4 | 1 | 1.7 | 10 | 64 | 2.75 | 42 |
| ZF18K4E-TFD-551 | 415/3 | 17.2 | 6400 | Rotalock | 1 1/4 | 1 | 1.7 | 12 | 74 | 2.27 | 44 |
| ZF24K4E-TWD-551 | 415/3 | 20.9 | 7900 | Rotalock | 1 3/4 | 11/4 | 4 | 16.1 | 99 | 1.41 | 100 |
| ZF33K4E-TWD-551 | 415/3 | 28.9 | 11000 | Rotalock | 1 3/4 | 11/4 | 4 | 22.3 | 127 | 1.02 | 100 |
| ZF40K4E-TWD-551 | 415/3 | 35.6 | 13500 | Rotalock | 1 3/4 | 11/4 | 4.1 | 25.1 | 167 | 0.83 | 110 |
| ZF48K4E-TWD-551 | 415/3 | 42.1 | 15600 | Rotalock | 2 1/4 | 13/4 | 1.66 | 3 | |||
