Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tipe piston: | gulir | Sumber daya: | AC Power |
|---|---|---|---|
| Konfigurasi: | Stationary | Sightglass: | Kompresor dengan penglihatan |
| Qty / satu palet: | 16PCS | Daya kuda: | 13HP |
| warna: | hitam | Tegangan: | 380 / 420V, 3ph, 50hz |
| Jenis: | Kompresor pendingin | Aplikasi: | Bagian Pendinginan |
| L * W * H: | 264 * 285 * 552mm | Berat bersih: | 62kg |
| berat kotor: | 65kg | Koneksi: | Rotolock |
| Cahaya Tinggi: | copeland ac compressor,commercial refrigeration compressor |
||

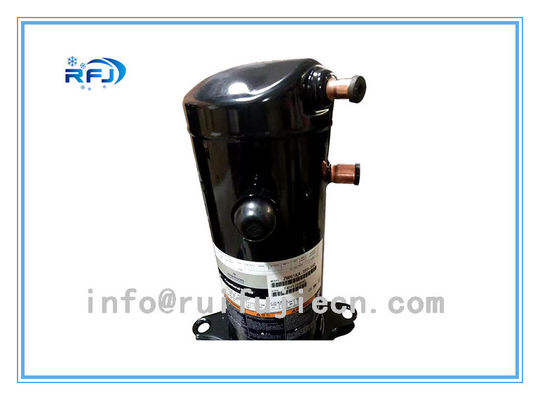

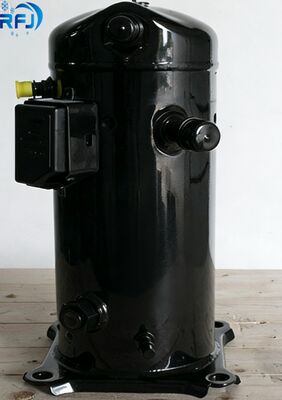

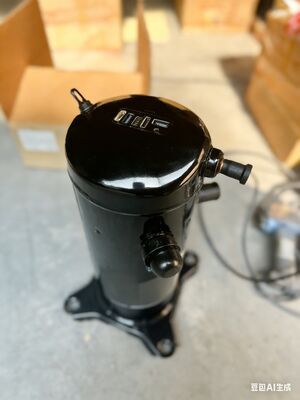

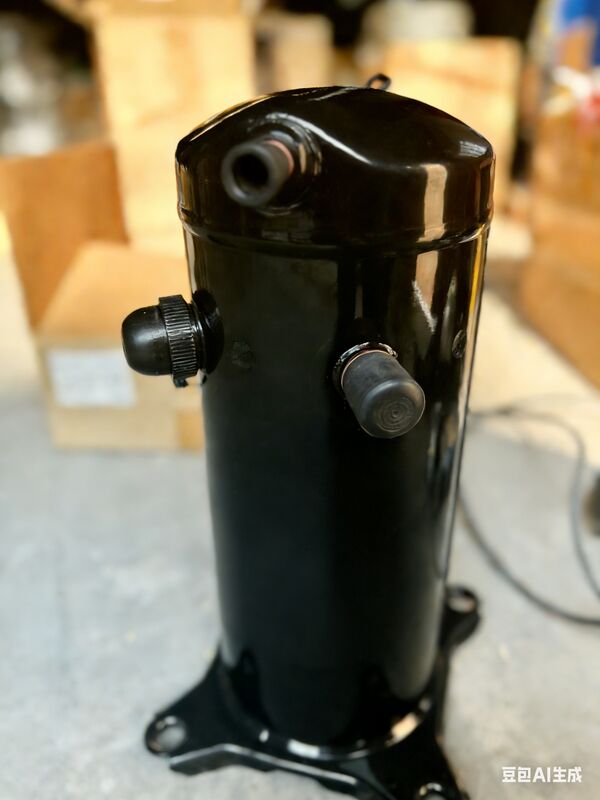

R404a Refrigeration Copeland gulir Kompresor ZB95KQE-TFD-551 untuk AC
Aplikasi:
Seri ZB dioptimalkan untuk aplikasi suhu tinggi dan menengah dengan pilihan yang tepat untuk:
Suhu 1.Medium: Kamar dingin, pendinginan minuman, pendinginan sayuran, display case, cetakan plastik.
2. Suhu tinggi: Proses pendinginan, produksi susu, pengeringan biji-bijian, daerah persiapan makanan, pelestarian bunga.
Kami dapat menyediakan lebih banyak model ZB seperti di bawah ini
Tidak | Model | Qty / Pallet | Pendingin |
1 | ZB15KQ-PFJ-558-2HP / R22 | 16 | R22 |
2 | ZB15KQ-TFD-558-2HP / R22 | 16 | R22 |
3 | ZB21KQ-PFJ-558-3HP / R22 | 16 | R22 |
4 | ZB21KQ-TFD-558-3HP / R22 | 16 | R22 |
5 | ZB26KQ-PFJ-558-3.5HP / R22 | 16 | R22 |
6 | ZB26KQ-TFD-558-3.5HP / R22 | 16 | R22 |
7 | ZB29KQ-TFD-558-4HP / R22 | 16 | R22 |
8 | ZB38KQ-TFD-558-5HP / R22 | 16 | R22 |
9 | ZB45KQ-TFD-558-6HP / R22 | 16 | R22 |
10 | ZB48KQ-TFD-558-7HP / R22 | 16 | R22 |
11 | ZB58KQ-TFD-551-8HP / R22 | 12 | R22 |
12 | ZB66KQ-TFD-551-9HP / R22 | 12 | R22 |
13 | ZB76KQ-TFD-551-10HP / R22 | 12 | R22 |
14 | ZB88KQ-TFD-551-12HP / R22 | 12 | R22 |
15 | ZB114KQ-TFD-551-15HP / R22 | 12 | R22 |
16 | ZB15KQE-PFJ-558-2HP / R404 | 16 | R404 |
17 | ZB15KQE-TFD-558-2HP / R404 | 16 | R404 |
18 | ZB19KQE-PFJ-558-2.5HP / R404 | 16 | R404 |
19 | ZB19KQE-TFD-558-2.5HP / R404 | 16 | R404 |
20 | ZB21KQE-PFJ-558-3HP | 16 | R404 |
21 | ZB21KQE-TFD-558-3HP | 16 | R404 |
22 | ZB26KQE-TFD-558-3.5HP | 16 | R404 |
23 | ZB26KQE-PFJ-558-3.5HP | 16 | R404 |
24 | ZB29KQE-TFD-558-4HP | 16 | R404 |
25 | ZB38KQE-TFD-558-5HP | 16 | R404 |
26 | ZB45KQE-TFD-558-6HP | 16 | R404 |
27 | ZB48KQE-TFD-558-7HP | 16 | R404 |
28 | ZB58KQE-TFD-551-8HP | 12 | R404 |
29 | ZB66KQE-TFD-551-9HP | 12 | R404 |
30 | ZB76KQE-TFD-551-10HP | 12 | R404 |
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | ||||||||
| Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
| Tipe motor | TFD | |||||||
| PFJ | PFJ | PFJ | PFJ | PFJ | ||||
| Daya nominal (HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
| Pemindahan (m³ / h) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
| Mulai saat ini (LRA) (Amp.) | ||||||||
| TFD | 24.5 ~ 26 | 30 ~ 32 | 36 ~ 40 | 41 ~ 46 | 50 | 58,6 ~ 65,5 | 67 ~ 74 | 101 |
| PFJ | 53 ~ 58 | 56 ~ 61 | 75 ~ 82 | 89 ~ 97 | 113 | |||
| Nilai Load Current (RLA) (Amp.) | ||||||||
| TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11,50 | 12.1 |
| PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
| Maks. Operasi saat ini (MCC) (Amp.) | ||||||||
| TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
| PFJ | 16 | 18 | 23 | 24 | 27 | |||
Kapasitansi operasi (Fase tunggal) | 40μF / 370V | 45μF / 370V | 50μF / 370V | 60μF / 370V | 60μF / 370V | |||
| Tenaga pemanas bak mesin (W) | 70 | |||||||
| Diameter luar adaptor (dalam.) | ||||||||
| Ukuran debit | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Ukuran Suction | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
| Dimenson (mm.) | ||||||||
| Panjang (L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
| Lebar (W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
| Tinggi (H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
| Sudut tunggal (aperture) | 190X190 (8.5) | |||||||
| Pengisian Minyak (L) | 1.18 | 1,45 | 1,45 | 1,45 | 1,36 | 1,89 | 1,89 | 1,80 |
| Berat (Kg) | ||||||||
| Berat bersih | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
| Berat kotor | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | |||||
| Model | ZB66KQ ZB66KQE | ZB76KQ ZB76KQE | ZB88KQ | ZB95KQ | ZB114KQ |
| Tipe motor | TFD | ||||
| Daya nominal (HP) | 9 | 10 | 12 | 13 | 15 |
| Pemindahan (m³ / h) | 25.7 | 28.8 | 33.2 | 36.4 | 43.4 |
| Mulai saat ini (LRA) (Amp.) | |||||
| TFD | 100 ~ 111 | 110 ~ 118 | 110 ~ 118 | 140 | 174 |
| PFJ | |||||
| Nilai Load Current (RLA) (Amp.) | |||||
| TFD | 17.3 | 19.2 | 22.1 | 22.1 | 27.1 |
| PFJ | |||||
| Maks. Arus operasi (MCC) (Amp.) | |||||
| TFD | 24.2 | 26.9 | 31 | 31 | 38 |
| PFJ | |||||
| Tenaga pemanas bak mesin (W) | 90 | ||||
| Diameter luar adaptor (dalam.) | |||||
| Ukuran debit | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| Ukuran Suction | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 |
| Dimenson (mm.) | |||||
| Panjang (L) | |||||
| Lebar (W) | 284 | 284 | 284 | 285 | 285 |
| Tinggi (H) | 546 | 546 | 546 | 552 | 553 |
| Sudut tunggal (aperture) | 190X190 (8.5) | ||||
| Pengisian Minyak (L) | 3.25 | 3.25 | 3.25 | 3.3 | 3.3 |
| Berat (Kg) | |||||
| Berat bersih | 59 | 62 | 62 | 62 | 63 |
| Berat kotor | 62 | 65 | 65 | 65 | 66 |
