| Nama merek: | Copeland |
| Nomor Model: | ZB114KQ |
| Moq: | 1pcs |
| harga: | discussed |
| Waktu Pengiriman: | 7-10 hari kerja setelah menerima pembayaran |
| Ketentuan Pembayaran: | L/C,T/T,Western Union |

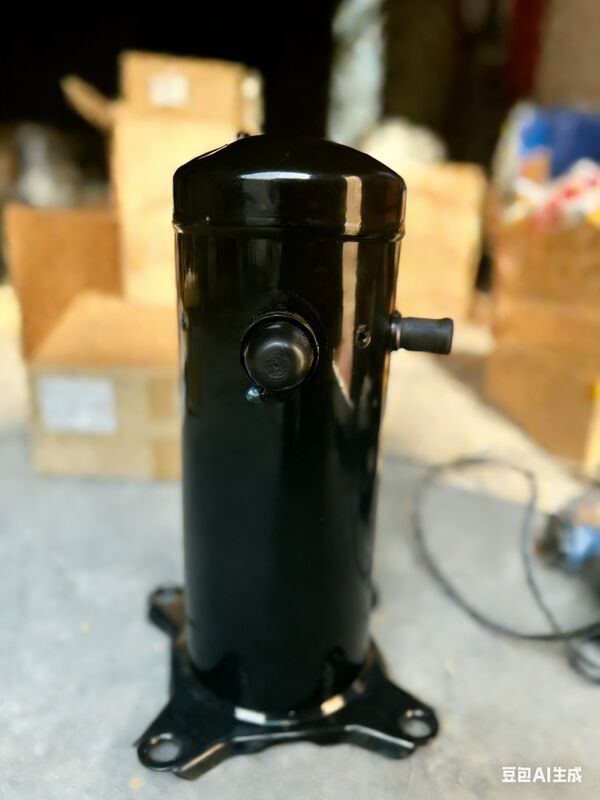

Kompresor Scroll Efisien Tinggi Pendingin ZB114KQ/R22 untuk AC
Spesifikasi:
Copeland:
1. Semua model dijual
2. Harga Kompetitif
3. Kapasitas Pasokan Berkelanjutan
Fitur:
1. Konsumsi energi rendah
2. Pengoperasian stabil
3. Mudah dibongkar dan dipasang
Deskripsi:
Teknologi Scroll Digital® untuk modulasi kapasitas sederhana dan tanpa langkah.
Aplikasi:
Seri ZB dioptimalkan untuk aplikasi suhu tinggi dan sedang dalam pilihan yang tepat untuk:
1. Suhu sedang: Ruang dingin, pendinginan minuman, pendinginan sayuran, etalase, pencetakan plastik.
2. Suhu tinggi: Pendinginan proses, produksi susu, pengeringan biji-bijian, area persiapan makanan, pengawetan bunga.
Kami dapat menyediakan lebih banyak model ZB seperti di bawah ini
|
No |
Model |
Qty/Palet |
Refrigeran |
|
1 |
ZB15KQ-PFJ-558-2HP/R22 |
16 |
R22 |
|
2 |
ZB15KQ-TFD-558-2HP/R22 |
16 |
R22 |
|
3 |
ZB21KQ-PFJ-558-3HP/R22 |
16 |
R22 |
|
4 |
ZB21KQ-TFD-558-3HP/R22 |
16 |
R22 |
|
5 |
ZB26KQ-PFJ-558-3.5HP/R22 |
16 |
R22 |
|
6 |
ZB26KQ-TFD-558-3.5HP/R22 |
16 |
R22 |
|
7 |
ZB29KQ-TFD-558-4HP/R22 |
16 |
R22 |
|
8 |
ZB38KQ-TFD-558-5HP/R22 |
16 |
R22 |
|
9 |
ZB45KQ-TFD-558-6HP/R22 |
16 |
R22 |
|
10 |
ZB48KQ-TFD-558-7HP/R22 |
16 |
R22 |
|
11 |
ZB58KQ-TFD-551-8HP/R22 |
12 |
R22 |
|
12 |
ZB66KQ-TFD-551-9HP/R22 |
12 |
R22 |
|
13 |
ZB76KQ-TFD-551-10HP/R22 |
12 |
R22 |
|
14 |
ZB88KQ-TFD-551-12HP/R22 |
12 |
R22 |
|
15 |
ZB114KQ-TFD-551-15HP/R22 |
12 |
R22 |
|
16 |
ZB15KQE-PFJ-558-2HP/R404 |
16 |
R404 |
|
17 |
ZB15KQE-TFD-558-2HP/R404 |
16 |
R404 |
|
18 |
ZB19KQE-PFJ-558-2.5HP/R404 |
16 |
R404 |
|
19 |
ZB19KQE-TFD-558-2.5HP/R404 |
16 |
R404 |
|
20 |
ZB21KQE-PFJ-558-3HP |
16 |
R404 |
|
21 |
ZB21KQE-TFD-558-3HP |
16 |
R404 |
|
22 |
ZB26KQE-TFD-558-3.5HP |
16 |
R404 |
|
23 |
ZB26KQE-PFJ-558-3.5HP |
16 |
R404 |
|
24 |
ZB29KQE-TFD-558-4HP |
16 |
R404 |
|
25 |
ZB38KQE-TFD-558-5HP |
16 |
R404 |
|
26 |
ZB45KQE-TFD-558-6HP |
16 |
R404 |
|
27 |
ZB48KQE-TFD-558-7HP |
16 |
R404 |
|
28 |
ZB58KQE-TFD-551-8HP |
12 |
R404 |
|
29 |
ZB66KQE-TFD-551-9HP |
12 |
R404 |
|
30 |
ZB76KQE-TFD-551-10HP |
12 |
R404 |
|
Model NO. |
Suhu Cindensat |
Suhu Penguapan ° C (R22/50HZ) |
|||||
|
-12 |
-10 |
-5 |
0 |
5 |
10 |
||
|
ZB15KQ |
40 |
3300 |
3550 |
4350 |
5200 |
6250 |
7400 |
|
ZB19KQ |
40 |
3650 |
3950 |
4850 |
5850 |
7000 |
8300 |
|
ZB21KQ |
40 |
4650 |
5050 |
6200 |
7450 |
8850 |
10500 |
|
ZB26KQ |
40 |
5100 |
5500 |
6800 |
8200 |
9850 |
11700 |
|
ZB29KQ |
40 |
6230 |
6790 |
8290 |
9970 |
11800 |
14070 |
|
ZB38KQ |
40 |
7300 |
8000 |
9950 |
12200 |
14650 |
17300 |
|
ZB45KQ |
40 |
9400 |
10200 |
12400 |
14900 |
17800 |
21000 |
|
ZB48KQ |
40 |
10390 |
11285 |
13700 |
16436 |
19574 |
23199 |
|
ZB58KQ |
40 |
11800 |
12950 |
16100 |
19600 |
19574 |
28000 |
|
ZB66KQ |
40 |
13950 |
15100 |
18400 |
22200 |
26500 |
31500 |
|
ZB76KQ |
40 |
16400 |
17800 |
21700 |
28500 |
30500 |
35500 |
|
ZB88KQ |
40 |
18800 |
20400 |
24900 |
30000 |
36000 |
42000 |
|
ZB95KQ |
40 |
19500 |
21400 |
26500 |
32000 |
38200 |
45200 |
|
ZB114KQ |
40 |
23200 |
25500 |
31700 |
38500 |
41600 |
54500 |
|
Model NO. |
Suhu Cindensat |
Suhu Penguapan ° C (R404/50HZ) |
||||||
|
-25 |
-20 |
-15 |
-10 |
-5 |
0 |
5 |
||
|
ZB15KQE |
40 |
1870 |
2430 |
3000 |
3700 |
4450 |
5350 |
6350 |
|
ZB19KQE |
40 |
2490 |
3050 |
3750 |
4550 |
5450 |
6500 |
7700 |
|
ZB21KQE |
40 |
3000 |
3700 |
4550 |
5000 |
6600 |
7900 |
9350 |
|
ZB26KQE |
40 |
3500 |
4300 |
5250 |
6350 |
7650 |
9100 |
10800 |
|
ZB29KQE |
40 |
4070 |
5040 |
6160 |
7460 |
8960 |
10680 |
12650 |
|
ZB38KQE |
40 |
5100 |
6250 |
7700 |
9300 |
11200 |
13350 |
15800 |
|
ZB45KQE |
40 |
6000 |
7400 |
9050 |
10950 |
13150 |
15700 |
18600 |
|
ZB48KQE |
40 |
6579 |
8150 |
9969 |
12074 |
14500 |
17287 |
20471 |
|
ZB58KQE |
40 |
7050 |
9250 |
11700 |
14400 |
17500 |
21000 |
24900 |
|
ZB66KQE |
40 |
8900 |
11100 |
13500 |
16400 |
19600 |
23400 |
27600 |
|
ZB76KQE |
40 |
10900 |
13300 |
16100 |
19400 |
23300 |
27800 |
33000 |
| Kompresor Scroll Seri ZB Untuk AC | ||||||||
| Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
| Tipe motor | TFD | |||||||
| PFJ | PFJ | PFJ | PFJ | PFJ | ||||
| Daya nominal(HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
| Perpindahan(m³/j) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
| Arus start(LRA) (Amp.) | ||||||||
| TFD | 24.5~26 | 30~32 | 36~40 | 41~46 | 50 | 58.6~65.5 | 67~74 | 101 |
| PFJ | 53~58 | 56~61 | 75~82 | 89~97 | 113 | |||
| Arus Beban Terukur(RLA) (Amp.) | ||||||||
| TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11.50 | 12.1 |
| PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
| Arus pengoperasian maks (MCC) (Amp.) | ||||||||
| TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
| PFJ | 16 | 18 | 23 | 24 | 27 | |||
|
Kapasitansi pengoperasian (fase tunggal) |
40μF/370V | 45μF/370V | 50μF/370V | 60μF/370V | 60μF/370V | |||
| Daya pemanas bak engkol(W) | 70 | |||||||
| Diameter luar adaptor(inci) | ||||||||
| Ukuran pelepasan | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Ukuran hisap | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
| Dimensi(mm.) | ||||||||
| Panjang(L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
| Lebar(W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
| Tinggi(H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
| Sudut alas (bukaan) | 190X190 (8.5) | |||||||
| Pengisian oli(L) | 1.18 | 1.45 | 1.45 | 1.45 | 1.36 | 1.89 | 1.89 | 1.80 |
| Berat(Kg) | ||||||||
| Berat bersih | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
| Berat kotor | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
| Kompresor Scroll Seri ZB Untuk AC | |||||
| Model | ZB66KQ ZB66KQE | ZB76KQ ZB76KQE | ZB88KQ | ZB95KQ | ZB114KQ |
| Tipe motor | TFD | ||||
| Daya nominal(HP) | 9 | 10 | 12 | 13 | 15 |
| Perpindahan(m³/j) | 25.7 | 28.8 | 33.2 | 36.4 | 43.4 |
| Arus start(LRA)(Amp.) | |||||
| TFD | 100~111 | 110~118 | 110~118 | 140 | 174 |
| PFJ | |||||
| Arus Beban Terukur(RLA)(Amp.) | |||||
| TFD | 17.3 | 19.2 | 22.1 | 22.1 | 27.1 |
| PFJ | |||||
| Arus pengoperasian maks (MCC)(Amp.) | |||||
| TFD | 24.2 | 26.9 | 31 | 31 | 38 |
| PFJ | |||||
| Daya pemanas bak engkol(W) | 90 | ||||
| Diameter luar adaptor(inci) | |||||
| Ukuran pelepasan | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| Ukuran hisap | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 |
| Dimensi(mm.) | |||||
| Panjang(L) | |||||
| Lebar(W) | 284 | 284 | 284 | 285 | 285 |
| Tinggi(H) | 546 | 546 | 546 | 552 | 553 |
| Sudut alas (bukaan) | 190X190 (8.5) | ||||
| Pengisian oli(L) | 3.25 | 3.25 | 3.25 | 3.3 | 3.3 |
| Berat(Kg) | |||||
| Berat bersih | 59 | 62 | 62 | 62 | 63 |
| Berat kotor | 62 | 65 | 65 | 65 | 66 |
|
|
