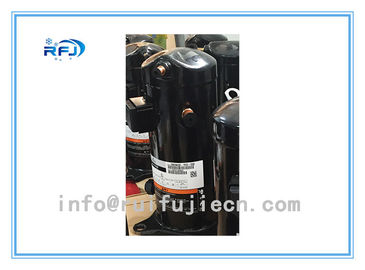

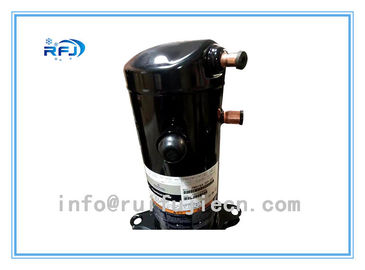

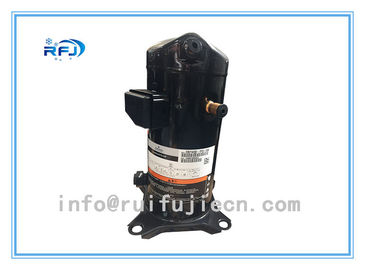

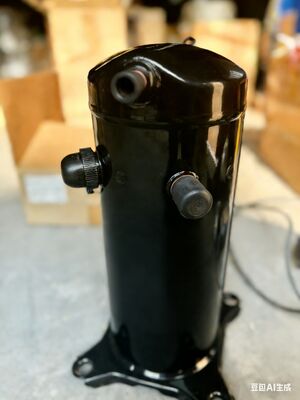

| Nama merek: | Copeland |
| Nomor Model: | ZB48KQE-TFD-558 |
| Moq: | 1pcs |
| harga: | discussed |
| Waktu Pengiriman: | 7-10 hari kerja setelah menerima pembayaran |
| Ketentuan Pembayaran: | L/C, T/T, Western Union |
Copeland:
1.Semua model dijual
2.Competitive Price
3.Continuous Supply Kapasitas
Fitur Copeland:
1.Low konsumsi energi
2.Stable operasi
3. Mudah dibongkar dan dipasang
Deskripsi:
Copeland Scroll Digital® Technology untuk modulasi kapasitas sederhana dan tanpa tahap.
Aplikasi:
Seri ZB dioptimalkan untuk aplikasi suhu tinggi dan menengah dengan pilihan yang tepat untuk:
Suhu 1.Medium: Kamar dingin, pendinginan minuman, pendinginan sayuran, display case, cetakan plastik.
2. Suhu tinggi: Proses pendinginan, produksi susu, pengeringan biji-bijian, daerah persiapan makanan, pelestarian bunga.
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | ||||||||
| Model | ZB15KQ ZB15KQE | ZB19KQ ZB19KQE | ZB21KQ ZB21KQE | ZB26KQ ZB26KQE | ZB29KQ ZB29KQE | ZB38KQ ZB38KQE | ZB45KQ ZB45KQE | ZB48KQ ZB48KQE |
| Tipe motor | TFD | |||||||
| PFJ | PFJ | PFJ | PFJ | PFJ | ||||
| Daya nominal (HP) | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
| Pemindahan (m³ / h) | 5.9 | 6.8 | 8.6 | 9.9 | 11.4 | 14.5 | 17.2 | 18.8 |
| Mulai saat ini (LRA) (Amp.) | ||||||||
| TFD | 24.5 ~ 26 | 30 ~ 32 | 36 ~ 40 | 41 ~ 46 | 50 | 58,6 ~ 65,5 | 67 ~ 74 | 101 |
| PFJ | 53 ~ 58 | 56 ~ 61 | 75 ~ 82 | 89 ~ 97 | 113 | |||
| Nilai Load Current (RLA) (Amp.) | ||||||||
| TFD | 4.30 | 4.30 | 5.70 | 7.10 | 7.90 | 8.90 | 11,50 | 12.1 |
| PFJ | 11.4 | 12.9 | 16.4 | 18.9 | 19.3 | |||
| Maks. Operasi saat ini (MCC) (Amp.) | ||||||||
| TFD | 6.0 | 6.0 | 8.0 | 10.0 | 11.0 | 12.5 | 16.1 | 17.0 |
| PFJ | 16 | 18 | 23 | 24 | 27 | |||
Kapasitansi operasi (Fase tunggal) | 40μF / 370V | 45μF / 370V | 50μF / 370V | 60μF / 370V | 60μF / 370V | |||
| Tenaga pemanas bak mesin (W) | 70 | |||||||
| Diameter luar adaptor (dalam.) | ||||||||
| Ukuran debit | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 |
| Ukuran Suction | 3/4 | 3/4 | 3/4 | 3/4 | 7/8 | 7/8 | 7/8 | 7/8 |
| Dimenson (mm.) | ||||||||
| Panjang (L) | 242 | 242 | 243 | 243 | 242 | 242 | 242 | 242 |
| Lebar (W) | 242 | 242 | 244 | 244 | 242 | 242 | 242 | 242 |
| Tinggi (H) | 383 | 389 | 412 | 425 | 430 | 457 | 457 | 457 |
| Sudut tunggal (aperture) | 190X190 (8.5) | |||||||
| Pengisian Minyak (L) | 1.18 | 1,45 | 1,45 | 1,45 | 1,36 | 1,89 | 1,89 | 1,80 |
| Berat (Kg) | ||||||||
| Berat bersih | 23 | 25 | 27 | 28 | 33 | 38 | 40 | 40 |
| Berat kotor | 26 | 29 | 30 | 31 | 37 | 41 | 44 | 44 |
| ZB Series Emerson Copeland Scroll Compressor Untuk AC | |||||
| Model | ZB66KQ ZB66KQE | ZB76KQ ZB76KQE | ZB88KQ | ZB95KQ | ZB114KQ |
| Tipe motor | TFD | ||||
| Daya nominal (HP) | 9 | 10 | 12 | 13 | 15 |
| Pemindahan (m³ / h) | 25.7 | 28.8 | 33.2 | 36.4 | 43.4 |
| Mulai saat ini (LRA) (Amp.) | |||||
| TFD | 100 ~ 111 | 110 ~ 118 | 110 ~ 118 | 140 | 174 |
| PFJ | |||||
| Nilai Load Current (RLA) (Amp.) | |||||
| TFD | 17.3 | 19.2 | 22.1 | 22.1 | 27.1 |
| PFJ | |||||
| Maks. Arus operasi (MCC) (Amp.) | |||||
| TFD | 24.2 | 26.9 | 31 | 31 | 38 |
| PFJ | |||||
| Tenaga pemanas bak mesin (W) | 90 | ||||
| Diameter luar adaptor (dalam.) | |||||
| Ukuran debit | 7/8 | 7/8 | 7/8 | 7/8 | 7/8 |
| Ukuran Suction | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 | 1 3/8 |
| Dimenson (mm.) | |||||
| Panjang (L) | |||||
| Lebar (W) | 284 | 284 | 284 | 285 | 285 |
| Tinggi (H) | 546 | 546 | 546 | 552 | 553 |
| Sudut tunggal (aperture) | 190X190 (8.5) | ||||
| Pengisian Minyak (L) | 3.25 | 3.25 | 3.25 | 3.3 | 3.3 |
| Berat (Kg) | |||||
| Berat bersih | 59 | 62 | 62 | 62 | 63 |
| Berat kotor | 62 | 65 | 65 | 65 | 66 |
Kami dapat menyediakan lebih banyak model ZB seperti di bawah ini
Tidak | Model | Qty / Pallet | Pendingin |
1 | ZB15KQ-PFJ-558-2HP / R22 | 16 | R22 |
2 | ZB15KQ-TFD-558-2HP / R22 | 16 | R22 |
3 | ZB21KQ-PFJ-558-3HP / R22 | 16 | R22 |
4 | ZB21KQ-TFD-558-3HP / R22 | 16 | R22 |
5 | ZB26KQ-PFJ-558-3.5HP / R22 | 16 | R22 |
6 | ZB26KQ-TFD-558-3.5HP / R22 | 16 | R22 |
7 | ZB29KQ-TFD-558-4HP / R22 | 16 | R22 |
8 | ZB38KQ-TFD-558-5HP / R22 | 16 | R22 |
9 | ZB45KQ-TFD-558-6HP / R22 | 16 | R22 |
10 | ZB48KQ-TFD-558-7HP / R22 | 16 | R22 |
11 | ZB58KQ-TFD-551-8HP / R22 | 12 | R22 |
12 | ZB66KQ-TFD-551-9HP / R22 | 12 | R22 |
13 | ZB76KQ-TFD-551-10HP / R22 | 12 | R22 |
14 | ZB88KQ-TFD-551-12HP / R22 | 12 | R22 |
15 | ZB114KQ-TFD-551-15HP / R22 | 12 | R22 |
16 | ZB15KQE-PFJ-558-2HP / R404 | 16 | R404 |
17 | ZB15KQE-TFD-558-2HP / R404 | 16 | R404 |
18 | ZB19KQE-PFJ-558-2.5HP / R404 | 16 | R404 |
19 | ZB19KQE-TFD-558-2.5HP / R404 | 16 | R404 |
20 | ZB21KQE-PFJ-558-3HP | 16 | R404 |
21 | ZB21KQE-TFD-558-3HP | 16 | R404 |
22 | ZB26KQE-TFD-558-3.5HP | 16 | R404 |
23 | ZB26KQE-PFJ-558-3.5HP | 16 | R404 |
24 | ZB29KQE-TFD-558-4HP | 16 | R404 |
25 | ZB38KQE-TFD-558-5HP | 16 | R404 |
26 | ZB45KQE-TFD-558-6HP | 16 | R404 |
27 | ZB48KQE-TFD-558-7HP | 16 | R404 |
28 | ZB58KQE-TFD-551-8HP | 12 | R404 |
29 | ZB66KQE-TFD-551-9HP | 12 | R404 |
30 | ZB76KQE-TFD-551-10HP | 12 | R404 |
Model nomor. | Suhu Cindensate | Suhu Penguapan ° C (R22 / 50HZ) | |||||
-12 | -10 | -5 | 0 | 5 | 10 | ||
ZB15KQ | 40 | 3300 | 3550 | 4350 | 5200 | 6250 | 7400 |
ZB19KQ | 40 | 3650 | 3950 | 4850 | 5850 | 7000 | 8300 |
ZB21KQ | 40 | 4650 | 5050 | 6200 | 7450 | 8850 | 10500 |
ZB26KQ | 40 | 5100 | 5500 | 6800 | 8200 | 9850 | 11700 |
ZB29KQ | 40 | 6230 | 6790 | 8290 | 9970 | 11800 | 14070 |
ZB38KQ | 40 | 7300 | 8000 | 9950 | 12200 | 14650 | 17300 |
ZB45KQ | 40 | 9400 | 10200 | 12400 | 14900 | 17800 | 21000 |
ZB48KQ | 40 | 10390 | 11285 | 13700 | 16436 | 19574 | 23199 |
ZB58KQ | 40 | 11800 | 12950 | 16100 | 19600 | 19574 | 28000 |
ZB66KQ | 40 | 13950 | 15100 | 18400 | 22200 | 26500 | 31500 |
ZB76KQ | 40 | 16400 | 17800 | 21700 | 28500 | 30500 | 35500 |
ZB88KQ | 40 | 18800 | 20400 | 24900 | 30000 | 36000 | 42000 |
ZB95KQ | 40 | 19500 | 21400 | 26500 | 32000 | 38200 | 45200 |
ZB114KQ | 40 | 23200 | 25500 | 31700 | 38500 | 41600 | 54500 |
Model nomor. | Suhu Cindensate | Suhu Penguapan ° C (R404 / 50HZ) | ||||||
-25 | -20 | -15 | -10 | -5 | 0 | 5 | ||
ZB15KQE | 40 | 1870 | 2430 | 3000 | 3700 | 4450 | 5350 | 6350 |
ZB19KQE | 40 | 2490 | 3050 | 3750 | 4550 | 5450 | 6500 | 7700 |
ZB21KQE | 40 | 3000 | 3700 | 4550 | 5000 | 6600 | 7900 | 9350 |
ZB26KQE | 40 | 3500 | 4300 | 5250 | 6350 | 7650 | 9100 | 10800 |
ZB29KQE | 40 | 4070 | 5040 | 6160 | 7460 | 8960 | 10680 | 12650 |
ZB38KQE | 40 | 5100 | 6250 | 7700 | 9300 | 11200 | 13350 | 15800 |
ZB45KQE | 40 | 6000 | 7400 | 9050 | 10950 | 13150 | 15700 | 18600 |
ZB48KQE | 40 | 6579 | 8150 | 9969 | 12074 | 14500 | 17287 | 20471 |
ZB58KQE | 40 | 7050 | 9250 | 11700 | 14400 | 17500 | 21000 | 24900 |
ZB66KQE | 40 | 8900 | 11100 | 13500 | 16400 | 19600 | 23400 | 27600 |
ZB76KQE | 40 | 10900 | 13300 | 16100 | 19400 | 23300 | 27800 | 3 3000 |
