Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tipe piston: | gulir | Konfigurasi: | Stationary |
|---|---|---|---|
| Sumber daya: | AC Power | Pelumasan Style: | Dilumasi |
| Gas: | R22 R407C | Modus drive: | Listrik |
| Berat badan: | 160 KGS | Tegangan: | 380V |
| warna: | Biru | ||
| Cahaya Tinggi: | screw type air compressor,scroll compressor refrigeration |
||

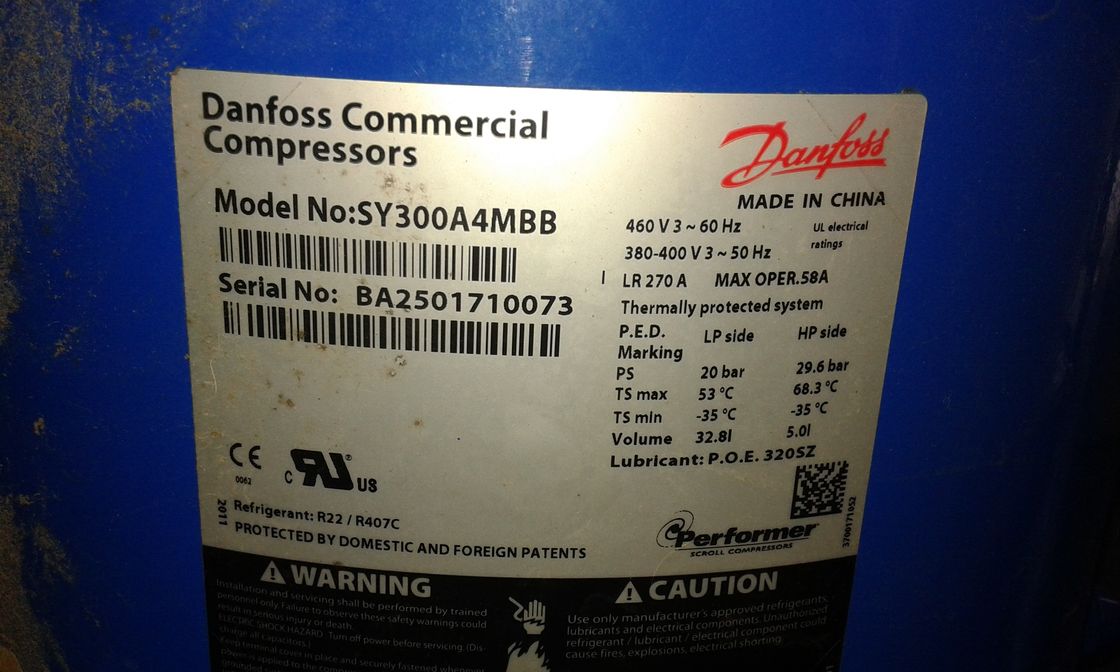

25hp R22 R407c Danfoss Commercial Compressor Sy300a4mbb Low Noise
spesifikasi
Danfoss pemain Gulir kompresor SM160
kompresor Performer adalah jenis kompresor gulir digunakan untuk kedua 50Hz dan 60Hz,
dapat digunakan untuk R22a, R407c
1. SM seri / SY untuk R22
2. seri SZ untuk R407c
3. rentang daya kuda dari 7 HP ke 25 hp
Seri SM / SZ.
* 7 hingga 25 HP.
* R22 / R407C refrigeran
MODEL COMPRESSOR UNTUK R22:
SM084
SM090
SM100
SM110
SM115
SM120
SM125
SM148
SM160
SM161
SM175
SM185
SY240
SY300
MODEL COMPRESSOR UNTUK R407C:
SZ084
SZ090
SZ100
SZ110
SZ115
SZ120
SZ125
SZ148
SZ160
SZ161
SZ175
SZ185
SZ240
SZ300
Seri SM:
SM084-4VM (7HP)
SM090-4VM (7.5HP)
SM100-4VM (8HP)
SM110-4VM (9HP)
SM115-4VM (9.5HP)
SM120-4VM (10HP)
SM125-4VM (10HP)
SM148-4VM (12HP)
SM160-4VM (13HP)
SM185-4VM (15HP)
Seires SZ:
SZ084-4VM (7HP)
SZ090-4VM (8HP)
SZ100-4VM (8HP)
SZ110-4VM (9HP)
SZ120-4VM (10HP)
SZ148-4VM (12HP)
SZ161-4VM (13HP)
SZ / Y185-4VM (15HP)
Kami dapat menyediakan lebih Danfoss model kompresor sebagai berikut:
| data yang 50Hz | |||||||||
| Model | Nominal Cap. 60 HZ | kapasitas pendinginan Nominal | Input daya | Polisi | EER | Volume menyapu | Pemindahan | biaya minyak | |
| TR | W | Btu / h | KW | W / W | Btu / h / W | cm / rew | m / h | dm | |
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 114,5 | 19,92 | 3.3 |
| SM090 | 7,5 | 21.800 | 74400 | 6.54 | 3.33 | 11.4 | 120,5 | 20,97 | 3.3 |
| SM100 | 8 | 23100 | 79000 | 6,96 | 3.33 | 11.3 | 127.2 | 22,13 | 3.3 |
| SM110 | 9 | 25900 | 88.600 | 7,82 | 3,32 | 11.3 | 144.2 | 25,09 | 3.3 |
| SM112 | 9.5 | 27600 | 94400 | 7.92 | 3.49 | 11,9 | 151,5 | 26,36 | 3.3 |
| SM115 | 9.5 | 28000 | 95.600 | 8.31 | 3.37 | 11,5 | 155 | 26,97 | 3.8 |
| SM120 | 10 | 30100 | 102.800 | 8.96 | 3.36 | 11,5 | 166,6 | 28,99 | 3.3 |
| SM124 | 10 | 31200 | 106.300 | 8,75 | 3,56 | 12.2 | 169,5 | 29,5 | 3.3 |
| SM125 | 10 | 30100 | 102.800 | 8.93 | 3.37 | 11,5 | 166,6 | 28,99 | 3.8 |
| SM147 | 12 | 36000 | 123.000 | 10,08 | 3.58 | 12.2 | 193,5 | 33,7 | 3.3 |
| SM148 | 12 | 36100 | 123.100 | 10,8 | 3,34 | 11.4 | 199 | 34.6 | 3.6 |
| SM160 | 13 | 39100 | 133.500 | 11.6 | 3.37 | 11,5 | 216,6 | 37,69 | 4 |
| SM161 | 13 | 39000 | 133.200 | 11,59 | 3.37 | 11,5 | 216,6 | 37,69 | 3.6 |
| SM175 | 14 | 42000 | 143.400 | 12.46 | 3.37 | 11,5 | 233 | 40,54 | 6.2 |
| Model | Pendingin | Kekuasaan | Berat bersih |
| SZ100-3 / 9VM | R134A / R407C | 8HP | 72kg |
| SZ110-3 / 9Vm | 9HP | 72kg | |
| SZ120-3 / 9VM | 10HP | 80kg | |
| SZ125-3RM | 10HP | 80kg | |
| SZ148-3 / 9VAM | 12HP | 86kg | |
| SZ161-T3 / 9VC | 13HP | 86kg | |
| SZ / Y185-3 / 9CAM | 15HP | 103KG | |
| SZ240A3 / 9CBM | 20HP | 160kg | |
| SZ300A3 / 9CBM | 25HP | 160kg | |
| SM084-4VM | R22 | 7HP | 72kg |
| SM090-4VM | 7.5HP | 72kg | |
| SM100-4VM | 8HP | 72kg | |
| SM110-4VM | 9HP | 80kg | |
| SM112A4ACB | 9HP | 80kg | |
| SM115-4CAM | 9.5HP | 80kg | |
| SM120-4VM | 10HP | 80kg | |
| SM148-4VAM | 12HP | 86kg | |
| SM125-4CAM | 10HP | 80kg | |
| SM124A4ACB | 10HP | 80kg | |
| SM147A4ACB | 12HP | 86kg | |
| SM161-4VAM | 13HP | 86kg | |
| SM160-4CBM | 13HP | 93KG | |
| SM175-4CAM | 14HP | 103KG | |
| SM175-4RM | 14HP | 103KG | |
| SM185-4CAM | 15HP | 103KG | |
| SM185-4RM | 15HP | 103KG | |
| SY240A4CBM | 20HP | 160kg | |
| SY300ACBM | 25HP | 160kg | |
| SY300A4CAM | 25HP | 160kg | |
| SY380A4CBM | 31HP | 225kg |
