Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tipe piston: | gulir | Sumber daya: | AC Power |
|---|---|---|---|
| Modus drive: | Listrik | Daya kuda: | 9HP |
| Konfigurasi: | Stationary | Mute: | Ya |
| Tegangan: | 380 / 420v | Koneksi: | Rotalock |
| Pasokan listrik: | 3ph 50hz | ||
| Cahaya Tinggi: | copeland a c compressor,commercial refrigeration compressor |
||

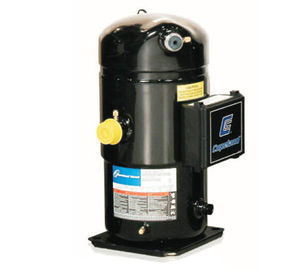

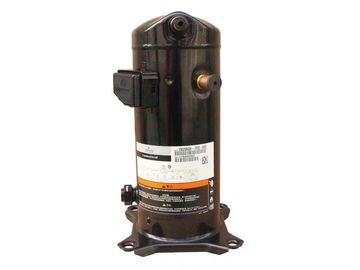

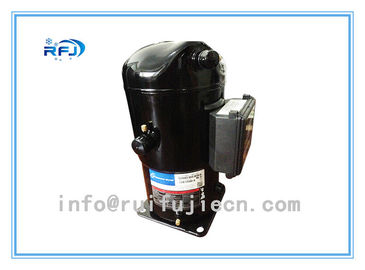

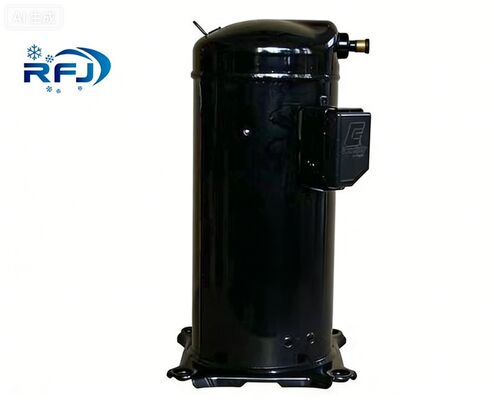

Copeland Refrigeration ZR11M3E-TWD-961 Kompresor gips piston Hermetik
Spesifikasi:
ZR Copeland menggulirkan kompresor untuk aplikasi penyejuk udara
Deskripsi:
1. Model memiliki: ZR16M3-TWD-522, ZR19M3-TWD-522, ZR47KC-TFD, ZR94KC-TFD, ZR125KC-TFD, ZR160KC-TFD, ZR61KC-TFD, ZR144KC-TFD, ZR72KC-TFD .. ..
2. Kopling gunting Copeland, bisa digunakan untuk pengkondisian udara dan pendinginan.
3. Kami memiliki model buatan China, Thailand dan Belguim.

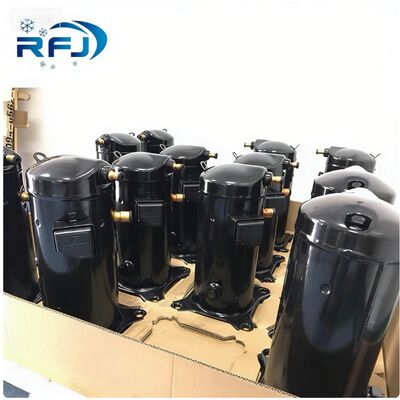

4. 12 unit packing dengan satu palet.
Dengan kinerja yang andal, efisiensi yang superior, pengoperasian yang tenang, dan kemampuan diagnostik, Emerson Climate Technologies menawarkan teknologi gulir paling canggih yang tersedia untuk mendukung kebutuhan AC komersial Anda. Dengan pilihan R-410A terluas yang tersedia, kompresor Copeland Scroll ™ yang menawarkan berkisar antara 2-40 HP di single dan sampai 80 HP bersamaan.
| Merek: | Copeland |
|---|---|
| Koneksi: | Rotalock |
| Dim 1 (mm): | 525 |
| Nomor model: | ZR 11M3E TWD 961 |
| tegangan: | 380/420 |
| Jaminan: | 1 tahun |
| Kedalaman Dengan Panel Dekorasi (mm): | 319 |
| Perpindahan CC: | 25,1 |
| Pasokan listrik: | 380-420V / 50Hz / 3ph |
| Rating Listrik: | 20 |
| Tahap: | Tiga fase |
| Pendingin: | Lihat literatur Copeland untuk refrigeran yang telah disetujui |
| Kesesuaian Refrigerant: | R407C; R134A; R22 |
| Ukuran Sambungan Tabung (mm): | - |
| Sambungan Valve: | 1.3 / 8 |
| Lebar Dengan Panel Dekorasi (mm): | 357 |
| Daya Kuda: | 9.0 |
| Suhu Aplikasi (C): | - |
| Suhu Aplikasi (C): | - |
| Daya motor nominal [HP ]: | 9 | |
| Pemindahan [m³ / h ]: | 25,1 | |
| Tingkat tekanan suara : | 67 | |
| Berat kotor / bersih [kg ]: | 107/96 | |
| Biaya minyak [dm³ ]: | 4,1 |
| Power supply [V / ~ / Hz ]: | 1 3/8 " | |
| Arus rotor terkunci [A ]: | 7/8 " | |
| Maks. Operasi saat ini [A ]: | 1 1/4 " | |
| Resistansi terhadap angin [Ω ]: | 319/357 |
| Milimeter | inci | ||
| Suction Rotolock valve connection: | 1 3/4 " | ||
| Discharge Sambungan katup Rotolock: | 1 1/4 " | ||
| Sambungan hisap dengan lengan yang disediakan: | 1 3/8 " | ||
| Sambungan discharge dengan lengan yang disediakan: | 7/8 " |
| Tahap | Model | Daya Kuda / HP | Pemindahan (m3 / h) | ISPA 7.2 / 54.4 ° C | Berat / Kg | Tinggi / mm | |
| Pendinginan (W) | Masukan (W) | ||||||
| 1 Fase | ZR16K3-PFJ | 1,33 | 3.97 | 4010 | 1320 | 25.9 | 370.4 |
| ZR18K3-PFJ | 1.5 | 4.37 | 4400 | 1440 | 25.9 | 370.4 | |
| ZR20K3-PFJ | 1,69 | 4.76 | 4890 | 1600 | 25.9 | 370.4 | |
| ZR22K3-PFJ | 1,83 | 5.34 | 5330 | 1730 | 25.9 | 382.8 | |
| ZR24K3-PFJ | 2 | 5.92 | 5920 | 1870 | 26.3 | 382.8 | |
| ZR26K3-PFJ | 2.17 | 6.27 | 6330 | 2000 | 25.9 | 382.8 | |
| ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 | |
| ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 | |
| ZR32K3-PFJ | 2,67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 | |
| ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 | |
| ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 | |
| ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 | |
| ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 | |
| ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 | |
| 3 Fase | ZR22K3-TFD | 1,83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 | |
| ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960 | 25.9 | 382.8 | |
| ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 | |
| ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 | |
| ZR32K3-TFD | 2,67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 | |
| ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 | |
| ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 | |
| ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 | |
| 2ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 | |
| ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 | |
| ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34,9 | 456.9 | |
| ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 | |
| ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 | |
| ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 | |
| ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 | |
| ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 | |
| ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 | |
| ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 | |
| ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 | |
| ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56,7 | 495.3 | |
| ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 | |
| ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 | |
| ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 | |
| ZR90K3-TWD | 7.5 | 20.9 | 21540 | 6620 | 91 | 542 | |
| ZR11M3-TWD | 9 | 24.9 | 25840 | 7805 | 91 | 542 | |
| ZR12M3-TWD | 10 | 28.8 | 29890 | 8955 | 92 | 542 | |
| ZR16M3-TWD | 13 | 35.6 | 37330 | 11175 | 98 | 557 | |
| ZR19M3-TWD | 15 | 42.1 | 45170 | 13400 | 112 | 596 | |
