Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Tempat asal: | Prancis | Nomor model: | SM147A4ALB |
|---|---|---|---|
| Jenis: | gulir | EER: | 12.2Btu / h / W |
| COP: | 3.58W / W | Kekuatan: | 380-460V / 3/50 ~ 60Hz |
| Berat badan: | 67.0kgs | Pelumasan Style: | Dilumasi |
| Sumber daya: | AC Power | warna: | biru |
| Refrigerant: | R22 | ||
| Cahaya Tinggi: | screw type air compressor,copeland refrigeration compressors |
||

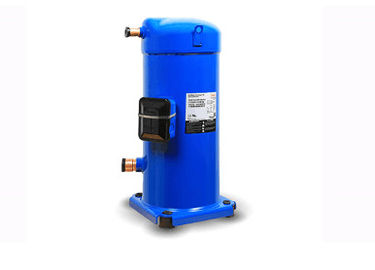

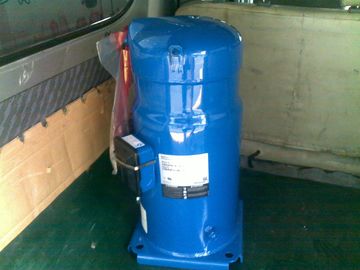

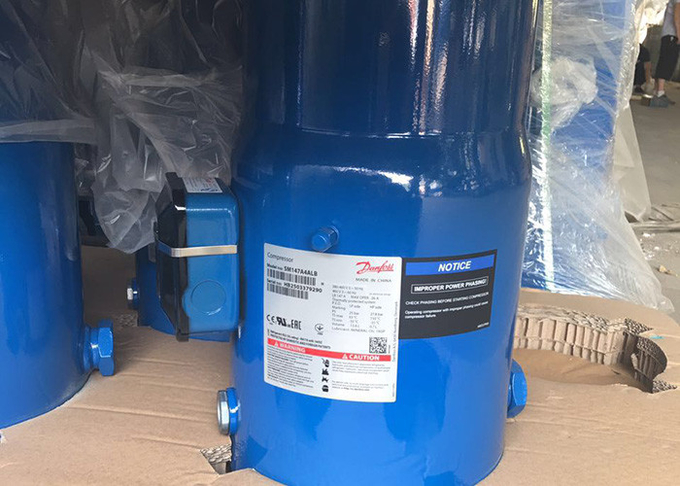

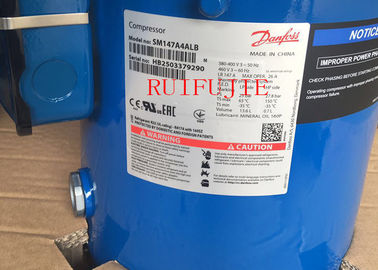

12HP DANFOSS Scroll type Performer Compressor SM147A4ALB UNTUK R22
Performer kompresor
Fitur:
1.high efisiensi
2. kehandalan yang baik
3.low noise
4.low getaran
Performer gulir kompresor dibuat oleh Danfoss di TianJin China,
Digunakan untuk refrigerantions
Bisa bekerja di 50Hz dan 60Hz
tegangan: 380-400V atau 460V
Seri SM dan SY dapat digunakan pada refrigeran R22
Model | Pendinginan nominal | Kapasitas pendinginan nominal | daya input | efisiensi | pelumas | berat | ||
| 50Hz | POLISI | EER | biaya | Kg | ||||
| HP | W | Btu / h | kW | W / W | Btu / h / W | dm3 | ||
| SM084 | 7 | 20400 | 69600 | 6.12 | 3.33 | 11.4 | 3.25 | 72 |
| SM090 | 7.5 | 21800 | 74400 | 6.54 | 3.33 | 11.4 | 3.25 | 72 |
| SM100 | 8 | 23100 | 79000 | 6.96 | 3.33 | 11.3 | 3.25 | 72 |
| SM110 | 9 | 25900 | 88600 | 7.82 | 3.32 | 11.3 | 3.25 | 80 |
| SM115 | 9.5 | 28000 | 95600 | 8.31 | 3.37 | 11.5 | 3.8 | 80 |
| SM120 | 10 | 30100 | 102800 | 8.96 | 3.36 | 11.5 | 3.25 | 80 |
| SM125 | 10 | 30100 | 102800 | 8.93 | 3.37 | 11.5 | 3.8 | 80 |
| SM147 | 12 | 36100 | 123200 | 10.8 | 3.34 | 11.4 | 3.3 | 86 |
| SM160 | 13 | 39100 | 133500 | 11.6 | 3.37 | 11.5 | 4 | 94 |
| SM161 | 13 | 39000 | 133200 | 11.59 | 3.37 | 11.5 | 3.3 | 86 |
| SM175 | 14 | 42000 | 143400 | 12.46 | 3.37 | 11.5 | 6.6 | 103 |
| SM185 | 15 | 45500 | 155300 | 13.62 | 3.34 | 11.4 | 6.6 | 103 |
| SY240 | 20 | 61834 | 211760 | 18.78 | 3.29 | 11.2 | 8 | 160 |
| SY300 | 25 | 78086 | 267400 | 23.6 | 3.31 | 11.3 | 8 | 160 |
| Barang | Kompresor gulir |
| Model | SM147A4ALB |
| Merek | Danfoss |
| Kekuasaan | 380-460V / 3/50 ~ 60Hz |
| Pemindahan | 193.5cm3 / rev |
| Kapasitas | 123.0kBtu / h |
| POLISI | 3.58W / W |
| Paket | 8pcs / palet |
| Sertifikasi | CE |
| Aplikasi | AC, sistem HVAC |
