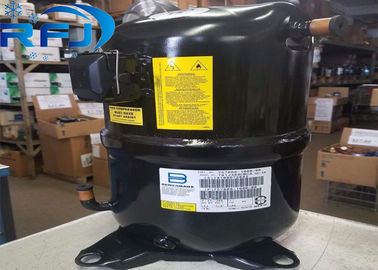

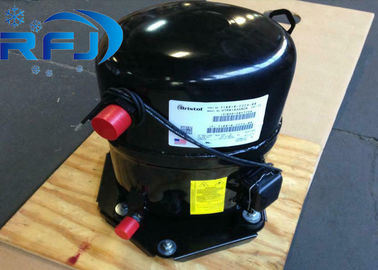

Bagian kompresor yang hebat, kompresor AC Bristol dc tersedia

Bagian kompresor yang hebat, kompresor AC Bristol dc tersedia

Dengan lebih dari sepuluh tahun pengalaman dalam pembuatan produk kompresor pendingin, shenzhen ruifujie Refrigeration Equipment Co, Ltd adalah produsen profesional dan pengekspor kompresor pendingin. Dengan berbagai, kualitas yang baik, pengiriman tepat waktu dan harga yang kompetitif, produk kami telah banyak digunakan dalam kompresor pendingin udara, peralatan pendingin komersial di lebih dari 20 negara.
Kami membangun sistem kualitas lengkap mulai dari sumber bahan, produksi, perakitan hingga pengujian. "Kualitas adalah yang pertama" berakar kuat dalam pikiran kami. Kami tidak bersaing hanya dengan harga, kami sangat menghargai kualitas dan layanan, serta tambahan nilai tinggi lainnya di luar produk. Kami telah dan akan didicating di bidang industri pendingin, terus meningkatkan tingkat teknologi dan kualitas, kami menganggapnya sebagai tujuan dan misi kami.

	@ 45/130						@ 45/100
			Masukan Motor					Masukan Motor			Data Kelistrikan			Pemindahan
Model	Kapasitas			EER / COp			Kapasitas		EER
	BTU / H WATTS			BTU / WH		B / B	BTU / H		BTU / WH		RLA LRA MCC			IN3 / REV CM3 / REV
230/208 VOLTS - 1 fase
H82J13 * ABC	13000	3808	1330	9.7	2.8421		19900	1120	17.8		5.9	33	11	1.26	52.45
H82J15 * ABC	14700	4307	1480	9.9	2.9007		22700	1240	18.2		6.5	43	13	1.363	56.71
H82J18 * ABC	18100	5303	1780	10.1	2.9593		26700	1440	18.6		7.4	43	13	1.57	65.4
H82J19 * ABC	19000	5567	1870	10.2	2.9886		28000	1510	18.6		8	43	14.5	1.655	68.84
H82J21 * ABC	21000	6153	2040	10.3	3.0179		30400	1630	18.6		9.4	54	17.5	1.768	73.6
H82J22 * ABC	22300	6534	2170	10.3	3.0179		32300	1740	18.6		9.9	54	16.6	1.862	77,52
H82J24 * ABC	24300	7120	2330	10.4	3.0472		34500	1840	18.7		10.6	54	17	1.975	82.28
H82J26 * ABC	26200	7676	2490	10.5	3.0765		37100	1970	18.9		11.6	74	20.5	2.097	87.36
H82J27 * ABC	27100	7940	2570	10.5	3.0765		38300	2030	18.9		11.8	74	20.5	2.144	89.33
H82J28 * ABC	28100	8233	2680	10.5	3.0765		39900	2110	18.9		13	74	23	2.219	92.44
H82J29 * ABC	29400	8614	2790	10.5	3.0765		41600	2200	18.9		12.9	74	20	2.313	96.37
H82J30 * ABC	30400	8907	2900	10.5	3.0765		43100	2290	18.9		13	88	25	2.369	98.67
H82J32 * ABC	31700	9288	3020	10.5	3.0765		45000	2380	18.9		13.6	88	24.5	2.463	102.6
H82J33 * ABC	33400	9786	3190	10.4	3.0472		47400	2490	19.1		14.2	84	23	2.614	108.82
H82J35 * ABC	34800	10196	3320	10.5	3.0765		49500	2580	19.1		14.5	84	25	2.727	113.58
H82J37 * ABC	37600	11016	3600	10.4	3.0472		53400	2810	19		15.7	84	24.5	2.915	121.29
H82J40 * ABC	39700	11631	3750	10.6	3.1058		55600	2930	19		17.9	102	29	3.028	126.04
H82J42 * ABC	42100	12335	3950	10.7	3.1351		58200	3060	19		18.3	102	27	3.116	129.64
H82J44 * ABC	44000	12891	4170	10.6	3.1058		60400	3180	19		18.5	105	31	3.274	136.36
H82J46 * ABC	45800	13419	4350	10.5	3.0765		63500	3340	19		20.2	105	33	3.38	140.8
265 VOLTS - 1 fase
H82J153ABH	14700	4307	1530	9.6	2.8128		22700	1280	17.7		5.8	46	12.4	1.363	56.71
H82J183ABH	18100	5303	1810	10	2.93		26700	1460	18.3		6.7	46	12.6	1.57	65.4
H82J213ABH	21000	6153	2040	10.3	3.0179		30400	1640	18.6		8	46	14	1.768	73.6
H82J223ABH	22300	6534	2170	10.3	3.0179		32300	1740	18.6		8.5	46	14.3	1.862	77,52
H82J283ABH	28100	8233	2680	10.5	3.0765		39900	2110	18.9		10.5	67	18	2.219	92.44
H82J323ABH	32200	9434	3060	10.5	3.08		45000	2380	18.9		12	67	19.8	2.463	40.37
H82J373ABH	37400	10958	3600	10.4	3.0472		53100	2800	19		13.8	81	25.5	2.915	121.29
575 VOLTS - 3 fase
H82J213DBF	21100	6182	2050	10.3	3.0179		30500	1640	18.6		2.6	26	6	1.768	73.6
H82J223DBF	22400	6563	2170	10.3	3.0179		32500	1740	18.6		2.7	26	6	1.862	77,52
H82J263DBF	26100	7647	2480	10.5	3.08		37000	1960	18.9		2.9	28	5.5	2.097	34.37
H82J273DBF	26900	7881	2560	10.5	3.0765		38200	2020	18.9		3	28	6	2.144	89.33
H82J283DBF	28000	8204	2670	10.5	3.0765		38700	2110	18.9		3.1	28	6	2.219	92.44
H82J293DBF	29200	8555	2780	10.5	3.0765		41400	2200	18.9		3.2	28	6	2.313	96.37
H82J303DBF	30700	8995	2910	10.5	3.08		42800	2270	18.9		3.5	28	6	2.369	38.83
H82J323DBF	31600	9259	3010	10.5	3.0765		44800	2370	18.9		3.5	28	6	2.463	102.6
H82J333DBF	32900	9640	3160	10.4	3.0472		46700	2460	19		3.9	36	6.1	2.614	108.83
H82J353DBF	34500	10108	3300	10.5	3.0765		49000	2570	19.1		4	36	7.5	2.727	113.58
H82J373DBF	37400	10958	3600	10.4	3.0472		53100	2800	19		4.4	36	7	2.915	121.29
H82J403DBF	39600	11603	3740	10.6	3.1058		55300	2910	19		4.4	36	5.5	3.028	126.04
H82J423DBF	41300	12101	3890	10.6	3.1058		58100	3060	19		4.6	36	7.3	3.116	129.64
H82J443DBF	43300	12687	4110	10.5	3.0765		60500	3190	19		4.7	36	6.8	3.274	136.36
H82J463DBF	45400	13302	4270	10.6	3.11		62800	3320	18.9		5.1	36	7.5	3.38	55.4
230/208 VOLTS - 1 fase
H82J09 * ABC	9000	2637	1010	8.9	2.61		14700	910	16.3		4.5	45	10.6	0,947	15.52
H82J48 * ABC	48000	14064	4520	10.6	3.11		66400	3560	18.7		21.4	130	35.6	3.519	57.68
H82J50 * ABC	50300	14738	4750	10.6	3.11		68500	3680	18.6		22.5	130	36	3.669	60.13

							KOMPONEN MULAI LISTRIK			UKURAN
	Biaya Minyak		Bobot
			Kapal Jaring				Jalankan Capacitor	Mulai Kapasitor					* DIAGRAM MEMBUAT HALAMAN 13
Model									GE		SEBUAH		B				C
	ONS	L.	Lbs	Kg Lbs		Kg	MFD / VOLTS	MFD / VOLTS	Menyampaikan	DI			MM	DI MM		DI			MM
H82J13 * ABC	30	1	58.5	26.5	62	28	30/370	145-175 / 370	3ARR3 * 3T *	11.735		298.07		14.25	361.95	14.531		369.09
H82J15 * ABC	30	1	58.5	26.5	62	28	30/370	145-175 / 330	3ARR3 * 3T *	11.735		298.07		14.25	361.95	14.531		369.09
H82J18 * ABC	30	1	58.5	26.5	62	28	35/370	145-175 / 330	3ARR3 * 3T *	11.735		298.07		14.25	361.95	14.531		369.09
H82J19 * ABC	30	1	58.5	26.5	62	28	35/370	145-175 / 330	3ARR3 * 3T *	11.735		298.07		14.25	361.95	14.531		369.09
H82J21 * ABC	30	1	61	28	64.5	29	35/370	145-175 / 330	3ARR3 * 3N *	12.235		310.77		14.75	374.65	15.031		381.79
H82J22 * ABC	30	1	61	28	64.5	29	35/370	145-175 / 330	3ARR3 * 3N *	12.235		310.77		14.75	374.65	15.031		381.79
H82J24 * ABC	40	1.2	61.5	28	65	29	35/370	145-175 / 330	3ARR3 * 3N *	12.235		310.77		14.75	374.65	15.031		381.79
H82J26 * ABC	40	1.2	69	31	72.5	33	40/370	189-227 / 250	3ARR3 * 3L *	12.235		310.77		14.75	374.65	15.031		381.79
H82J27 * ABC	40	1.2	69	31	72.5	33	40/370	189-227 / 250	3ARR3 * 3L *	12.235		310.77		14.75	374.65	15.031		381.79
H82J28 * ABC	40	1.2	69	31	72.5	33	40/370	189-227 / 250	3ARR3 * 3L *	12.235		310.77		14.75	374.65	15.031		381.79
H82J29 * ABC	40	1.2	69	31	72.5	33	40/370	189-227 / 250	3ARR3 * 3L *	12.235		310.77		14.75	374.65	15.031		381.79
H82J30 * ABC	40	1.2	71	32	74.5	33	45/370	189-227 / 250	3ARR3 * 3S *	12.485		317.12		15	381	15.281		388.14
H82J32 * ABC	40	1.2	71	32	74.5	33	45/370	189-227 / 250	3ARR3 * 3S *	12.485		317.12		15	381	15.281		388.14
H82J33 * ABC	40	1.2	88.5	40	91.5	42	40/440	189-227 / 250	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J35 * ABC	40	1.2	88.5	40	91.5	42	40/440	189-227 / 250	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J37 * ABC	40	1.2	88.5	40	91.5	42	45/440	189-227 / 250	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J40 * ABC	40	1.2	88.5	40	91.5	42	55/370	189-227 / 250	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J42 * ABC	40	1.2	88.5	40	91.5	42	60/370	216-259 / 330	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J44 * ABC	40	1.2	88.5	40	91.5	42	60/370	216-259 / 330	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J46 * ABC	40	1.2	88.5	40	91.5	42	60/370	216-259 / 330	3ARR3 * 3S *	14.063		357.2		15.594	396.09	15.875		403.23
H82J153ABH	30	1	63.5	29	67	30	30/440	145-175 / 330	3ARR3 * 3V *	11.735		298.07		14.25	361.95	14.531		369.09
H82J183ABH	30	1	63.5	29	67	30	30/440	145-175 / 330	3ARR3 * 3V *	11.735		298.07		14.25	361.95	14.531		369.09
H82J213ABH	30	1	63.5	29	67	30	30/440	145-175 / 330	3ARR3 * 3V *	11.735		298.07		14.25	361.95	14.531		369.09
H82J223ABH	30	1	63.5	29	67	30	30/440	145-175 / 330	3ARR3 * 3V *	11.735		298.07		14.25	361.95	14.531		369.09
H82J283ABH	40	1.2	69	31	72.5	33	35/440	145-175 / 330	3ARR3 * 3R *	12.235		310.77		14.75	374.65	15.031		381.79
H82J323ABH	40	1.2	69	31.3	72.5	32.9	35/370	145-175 / 330	T / A	12.2		309.88		14.8	375.92	15.031		381.79
H82J373ABH	40	1.2	88.5	40	91.5	42	50/370	161-193 / 250	3AN	14.06		357.2		15.59	396.09	15.875		403.23
H82J213DBF	30	1	62.5	29	66	29	T / A	T / A	T / A	11.735		298.07		14.25	361.95	14.531		369.09
H82J223DBF	30	1	62.5	29	66	29	T / A	T / A	T / A	11.735		298.07		14.25	361.95	14.531		369.09
H82J263DBF	40	1.2	68.5	31.1	72	32.7	T / A	T / A	T / A	12.4		314.96		15	381	15.3		388.62
H82J273DBF	40	1.2	68.5	31	72	33	T / A	T / A	T / A	12.485		317.12		15	381	15.281		388.14
H82J283DBF	40	1.2	68.5	31	72	33	T / A	T / A	T / A	12.485		317.12		15	381	15.281		388.14
H82J293DBF	40	1.2	68.5	31	72	33	T / A	T / A	T / A	12.485		317.12		15	381	15.281		388.14
H82J303DBF	40	1.2	68.5	31.1	72	32.7	T / A	T / A	T / A	12.5		317.5		15	381	15.3		388.62
H82J323DBF	40	1.2	68.5	31	72	33	T / A	T / A	T / A	12.485		317.12		15	381	15.281		388.14
H82J333DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J353DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J373DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J403DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J423DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J443DBF	40	1.2	85.5	39	88.5	40	T / A	T / A	T / A	14.063		357.2		15.594	366.09	15.875		403.23
H82J463DBF	40	1.2	81.5	37	84.5	38.3	T / A	T / A	T / A	14		355.6		15.6	396.24	15.9		403.86
H82J09 * ABC	30	1	58.5	26.5	62	28.1	35/370	88-108 / 330	3ARR3 * 3T *	13.5		342.9		14.3	363.22	14.5		368.3
H82J48 * ABC	40	1.2	87	39.5	90	40.8	60/370	189-227 / 330	3ARR3 * 3S *	14.3		363.22		15.8	401.32	16.1		408.94
H82J50 * ABC	40	1.2	87	39.5	90	40.8	60/370	189-227 / 330	3ARR3 * 3S *	14.3		363.22		15.8	401.32	16.1		408.94

	@ 45/130					@ 45/100
			Masukan Motor				Masukan Motor			Data Kelistrikan			Pemindahan
Model	Kapasitas			EER / COp		Kapasitas		EER
	BTU / H WATTS			BTU / WH	B / B	BTU / H		BTU / WH		RLA LRA MCC			IN3 / REV CM3 / REV
208/230 V	OLTS - 1 fase
H20J273ABC	26770	7844	2400	11.2	3.3	35630	1910	18.7		11	68	17.5	2.92	47.85
H20J293ABC	29090	8523	2630	11.1	3.2	38700	2080	18.6		11.5	68	17.5	3.13	51.29
H20J313ABC	30250	8863	2670	11.3	3.3	40350	2110	19.1		11.9	78	20	3.42	56.04
H20J323ABC	32300	9464	2820	11.5	3.4	42700	2220	19.2		12.7	78	22.5	3.38	55.39
H20J353ABC	34450	10094	3000	11.5	3.4	45350	2390	19		13.1	78	21	3.61	59.16
H20J383ABC	37850	11090	3350	11.3	3.3	49000	2590	18.9		14.9	86	24	4.02	65.88
H20J403ABC	40700	11925	3600	11.3	3.3	52250	2850	18.3		17.1	102	28	4.15	68,01
H20J423ABC	41800	12247	3710	11.3	3.3	53900	2930	18.4		17	102	27	4.23	69.32
H20J433ABC	42630	12491	3810	11.2	3.3	54880	3010	18.2		17.5	102	27	4.31	70.63
H20J443ABC	44220	12956	3960	11.2	3.3	56300	3100	18.2		17.8	102	28	4.42	72.43

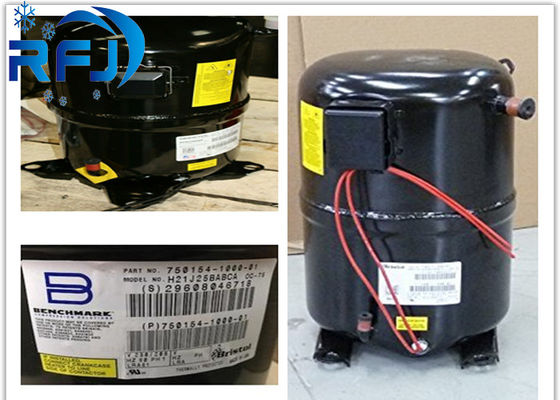

BENCHMARK H21J SERI
208/230 VOLTS - 1 fase
H21J14 * ABC	13200	3867	1260	10.5	3.1	19200	1060	18.2		5.4	36	10	1.66	27.21
H21J15 * ABC	14500	4248	1380	10.5	3.1	20700	1140	18.1		6	36	10.5	1.79	29.27
H21J17 * ABC	18300	5362	1660	11.1	3.3	24700	1330	18.7		7	40.5	12.5	2.04	33.44
H21J19 * ABC	19000	5567	1750	10.9	3.2	26100	1400	18.6		8	53.5	15.5	2.14	35,06
H21J20 * ABC	20190	5915	1850	10.9	3.2	27310	1460	18.7		8	53.5	16	2.22	36.45
H21J24 * ABC	24030	7041	2178	11	3.2	32450	1693	19.2		10.1	61	16.5	2.66	43.66
H21J25 * ABC	24580	7202	2220	11.1	3.3	33400	1760	19		10.7	61	17	2.77	45.32
H21J27 * ABC	27680	8110	2425	11.4	3.3	36440	1910	19.1		11.1	78	19.5	2.92	47.78
H21J29 * ABC	28390	8318	2490	11.4	3.3	37980	1980	19.2		11.6	78	20	3.03	49.63
H21J30 * ABC	29720	8708	2600	11.4	3.3	39490	2050	19.3		11.8	78	21	3.13	51.28
H21J32 * ABC	30940	9065	2720	11.4	3.3	41165	2125	19.4		12.3	78	21	3.24	53.14
H21J34 * ABC	34170	10011	2980	11.5	3.4	44640	2340	19.1		13.2	78	23	3.67	60.15
H21J36 * ABC	35950	10533	3150	11.4	3.3	46660	2420	19.3		14.1	78	23	3.67	60.15
H21J38 * ABC	39030	11435	3370	11.6	3.4	49730	2575	19.3		15.4	86	26.5	3.88	63.59
H21J40 * ABC	41400	12130	3640	11.4	3.3	52410	2780	18.9		17.4	102	28	4.02	65.89
H21J43 * ABC	43117	12633	3811	11.3	3.3	55295	2950	18.7		17.5	102	29	4.31	70.64
