| Nama merek: | Carrier Carlyle C |
| Nomor Model: | 06EM175 |
| Moq: | 1 |
| harga: | 1-7000 |
| Waktu Pengiriman: | 7 hari |
| Ketentuan Pembayaran: | T/T, Western Union |

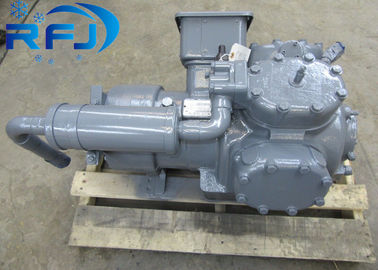

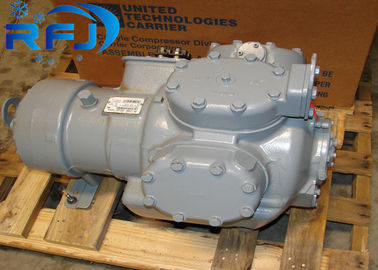

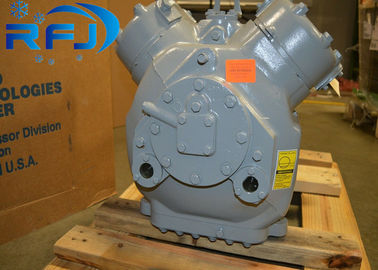

pembawa semi-hermetic R134A 25hp Carrier Carlyle Compressor 06EM175
Kompresor semi-kedap udara Carlyle 06D / E sangat cocok untuk pendinginan komersial, penyejuk udara, proses pendinginan, dan ruang lingkungan. Mereka sangat fleksibel dan dapat digunakan dengan banyak refrigeran HFC baru seperti R-507, R-404A, R-407C dan R-134a, selain refrigeran konvensional (R-12, R-22, dan R -502). Kompresor dapat dioperasikan pada 50 atau 60 hertz. Banyak fitur menonjol dari kompresor 06D / E tercantum di bawah ini.
fitur:
Pompa oli aliran tinggi dan dapat dibalik secara otomatis menghasilkan pelumasan oli perpindahan positif.
Sistem ventilasi crankcase menyamakan tekanan selama startup dan memastikan oli kembali ke bah.
Bah yang terlalu besar menyimpan oli ekstra di dalam bak mesin untuk mencegah tingkat jatuh di bawah kisaran pelumasan yang aman selama awal banjir.
Piston berkontur menurunkan kelonggaran silinder untuk meningkatkan kapasitas dan efisiensi kompresor.
Katup efisiensi tinggi memberikan peningkatan aliran refrigeran dan penurunan tekanan yang lebih rendah.
Sakelar tekanan oli elektronik.
| MODEL | HP | CFM @ 1750 RPM | RANGE SUHU SUCTION (DEGREES F) | CYL NO | BORES (INCHES) | STROKE (INCHES) | BIAYA MINYAK (PINTS) | |||||
| R502 / R404A / R507 | R12 / R134a | R22 | ||||||||||
| MIN | MAX | MIN | MAX | MIN | MAX | |||||||
| 06DR109 | 2.0 | 8.7 | -40 | 0 | -10 | 55 | -35 | 0 | 2 | 2,00 | 1-3 / 8 | 3,00 |
| 06DM808 | 3.0 | 8.0 | 0 | 50 | - | - | 0 | 55 | 2 | 2,00 | 1-1 / 4 | 3,00 |
| 06DR013 | 3.0 | 13.1 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2,00 | 1 | 4,50 |
| 06DM313 | 5.0 | 13.1 | 0 | 50 | - | - | 0 | 55 | 4 | 2,00 | 1 | 4,50 |
| 06DR316 | 5.0 | 15.9 | -40 | 25 | -10 | 55 | -35 | 25 | 4 | 2,00 | 1-1 / 4 | 4,50 |
| 06DM316 | 5.0 | 15.9 | 0 | 25 | - | - | 0 | 45 | 4 | 2,00 | 1-1 / 4 | 4,50 |
| 06DR718 | 5.0 | 18.3 | -40 | 0 | -10 | 55 | -35 | 0 | 4 | 2,00 | 1-7 / 16 | 5.50 |
| 06DA818 | 6.5 | 18.3 | 0 | 50 | - | - | 0 | 55 | 4 | 2,00 | 1-7 / 16 | 5.50 |
| 06DR820 | 6.5 | 20.0 | -40 | 40 | -10 | 55 | -35 | 45 | 4 | 2,00 | 1-9 / 16 | 5.50 |
| 06DR724 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2,00 | 1-1 / 4 | 8.00 |
| 06DR725 | 6.5 | 23.9 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2,00 | 1-1 / 4 | 8.00 |
| 06DA825 | 7.5 | 23.9 | 0 | 50 | - | - | 0 | 55 | 6 | 2,00 | 1-1 / 4 | 8.00 |
| 06DA824 | 7.5 | 23.9 | 0 | 50 | - | - | 0 | 55 | 6 | 2,00 | 1-1 / 4 | 8.00 |
| 06DR228 | 7.5 | 28.0 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2,00 | 1-15 / 32 | 8.00 |
| 06DA328 | 10.0 | 28.0 | 0 | 50 | - | - | 0 | 55 | 6 | 2,00 | 1-15 / 32 | 8.00 |
| 06DR337 | 10.0 | 37.1 | -40 | 25 | -10 | 55 | -35 | 45 | 6 | 2,00 | 1-15 / 16 | 8.00 |
| 06DM337 | 10.0 | 37.1 | 0 | 25 | - | - | 0 | 45 | 6 | 2,00 | 1-15 / 16 | 8.00 |
| 06DA537 | 15.0 | 37.1 | 0 | 50 | - | - | 0 | 55 | 6 | 2,00 | 1-15 / 16 | 8.00 |
| 06DR541 | 15.0 | 41.0 | -40 | 25 | -10 | 55 | -35 | 25 | 6 | 2,00 | 2.15 | 8.00 |
| 06ER450 | 15.0 | 50.3 | -40 | 0 | - | - | -35 | 0 | 4 | 2-11 / 16 | 2-3 / 16 | 14.00 |
| 06EM450 | 15.0 | 50.3 | 0 | 25 | -10 | 55 | 0 | 45 | 4 | 2-11 / 16 | 2-3 / 16 | 14.00 |
| 06EA550 | 20.0 | 50.3 | 0 | 50 | - | - | 0 | 50 | 4 | 2-11 / 16 | 2-3 / 16 | 14.00 |
| 06ER465 | 20.0 | 68.3 | -40 | 0 | - | - | -35 | 0 | 6 | 2-11 / 16 | 1-63 / 64 | 19.00 |
| 06EA565 | 25.0 | 68.3 | 0 | 50 | -10 | 55 | 0 | 50 | 6 | 2-11 / 16 | 1-63 / 64 | 19.00 |
| 06ER475 | 20.0 | 75.4 | -40 | 0 | - | - | -35 | 0 | 6 | 2-11 / 16 | 2-3 / 16 | 19.00 |
| 06EM475 | 25.0 | 75.4 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11 / 16 | 2-3 / 16 | 19.00 |
| 06EA575 | 30.0 | 75.4 | 0 | 50 | - | - | 0 | 50 | 6 | 2-11 / 16 | 2-3 / 16 | 19.00 |
| 06ER399 | 30.0 | 99.0 | -40 | 0 | - | - | -35 | 0 | 6 | 2-11 / 16 | 2-7 / 8 | 19.00 |
| 06EM499 | 35.0 | 99.0 | 0 | 40 | -10 | 55 | 0 | 45 | 6 | 2-11 / 16 | 2-7 / 8 | 19.00 |
| 06EA599 | 40.0 | 99.0 | 0 | 50 | - | - | 0 | 50 | 6 | 2-11 / 16 | 2-7 / 8 | 19.00 |
