| Nama merek: | Performer |
| Nomor Model: | SH161A4ALB |
| Moq: | 1pcs |
| harga: | discussed |
| Waktu Pengiriman: | 7-10 hari kerja setelah menerima pembayaran |
| Ketentuan Pembayaran: | L/C, T/T, Western Union |

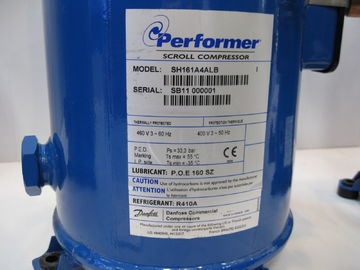

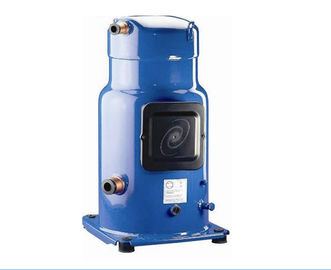

Performer Scroll Compressor R410 400V/3/50HZ SH161A4ALB untuk AC
Spesifikasi:
| Pemindahan[m³/jam]: | 26,4 | |
| Volume sapuan[cm³/putaran]: | 151,7 | |
| RPM[min-1]: | 2900 | |
| Berat[kg]: | 69 | |
| Biaya minyak[dm³]: | 3,3 | |
| Jenis minyak: | 160SZ | |
| Tekanan uji sistem maksimum sisi rendah / sisi tinggi: | 33/45 | |
| Jumlah maksimum start tanpa softstart[1/jam]: | 12 | |
| Batas muatan refrigeran[dm³]: | 7,9 | |
| Kekuatan suara[dB]: | 73,5 | |
| Pendingin: | R410A |
| milimeter | inci | ||
| Sambungan hisap dengan selongsong yang disediakan: | 35 | 1 3/8'' | |
| Koneksi pelepasan dengan selongsong yang disediakan: | 22 | 7/8'' |
|
Kompresor pemain adalah jenis kompresor gulir yang digunakan untuk 50Hz dan 60Hz,
dapat digunakan untuk R22a,R407c
1. Seri SM/SY untuk R22
2. Seri SZ untuk R407c
3. Tenaga kuda berkisar antara 7 HP hingga 25 hp
Seri SM/SZ.
*7 hingga 25 HP.
* Refrigeran R22/R407C
| UNTUK R22 | UNTUK R407C |
| SM084 | SZ084 |
| SM090 | SZ090 |
| SM100 | SZ100 |
| SM110 | SZ110 |
| SM115 | SZ115 |
| SM120 | SZ120 |
| SM125 | SZ125 |
| SM148 | SZ148 |
| SM160 | SZ160 |
| SM161 | SZ161 |
| SM175 | SZ175 |
| SM185 | SZ185 |
| SY240 | SZ240 |
| SY300 | SZ300 |
| Seri SM | Tenaga kuda | SZ seires | Tenaga kuda |
| SM084-4VM | 7HP | SZ084-4VM | 7HP |
| SM090-4VM | 7.5HP | SZ090-4VM | 8HP |
| SM100-4VM | 8HP | SZ100-4VM | 8HP |
| SM110-4VM | 9HP | SZ110-4VM | 9HP |
| SM115-4VM | 9.5HP | SZ120-4VM | 10HP |
| SM120-4VM | 10HP | SZ148-4VM | 12HP |
| SM125-4VM | 10HP | SZ161-4VM | 13HP |
| SM148-4VM | 12HP | SZ/Y185-4VM | 15HP |
| SM160-4VM | 13HP | ||
| SM185-4VM | 15HP |
Kami dapat menyediakan lebih banyak model kompresor seperti di bawah ini:
| Model | Pendingin | Kekuatan | Berat bersih |
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | 9HP | 72KG | |
| SZ120-3/9VM | 10HP | 80KG | |
| SZ125-3RM | 10HP | 80KG | |
| SZ148-3/9VAM | 12HP | 86KG | |
| SZ161-T3/9VC | 13HP | 86KG | |
| SZ/Y185-3/9CAM | 15HP | 103KG | |
| SZ240A3/9CBM | 20HP | 160KG | |
| SZ300A3/9CBM | 25HP | 160KG | |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | 7.5HP | 72KG | |
| SM100-4VM | 8HP | 72KG | |
| SM110-4VM | 9HP | 80KG | |
| SM112A4ACB | 9HP | 80KG | |
| SM115-4CAM | 9.5HP | 80KG | |
| SM120-4VM | 10HP | 80KG | |
| SM148-4VAM | 12HP | 86KG | |
| SM125-4CAM | 10HP | 80KG | |
| SM124A4ACB | 10HP | 80KG | |
| SM147A4ACB | 12HP | 86KG | |
| SM161-4VAM | 13HP | 86KG | |
| SM160-4CBM | 13HP | 93KG | |
| SM175-4CAM | 14HP | 103KG | |
| SM175-4RM | 14HP | 103KG | |
| SM185-4CAM | 15HP | 103KG | |
| SM185-4RM | 15HP | 103KG | |
| SY240A4CBM | 20HP | 160KG | |
| SY300ACBM | 25HP | 160KG | |
| SY300A4CAM | 25HP | 160KG | |
| SY380A4CBM | 31HP | 225KG |
