| Nama merek: | Brilliant |
| Nomor Model: | YBF Series |
| Moq: | 1pcs |
| harga: | discussed |
| Waktu Pengiriman: | 7-10 hari kerja setelah menerima pembayaran |
| Ketentuan Pembayaran: | L/C, T/T, Western Union |

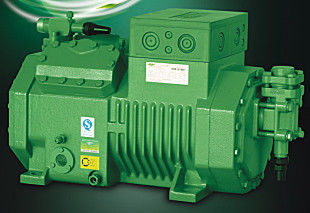

Kompresor Pendingin Semi Hermetik Briston Brilliant untuk AC / ruangan dingin
Spesifikasi:
Refrigerant: R22, R404
Sertifikat: CCC, EPRE
Nama model:
Y - Beijing Bo Laite refrigerasi peralatan perusahaan terbatas
BF - Setengah kompresor pendingin freon tertutup
4- Kata nomor silinder kompresor
F- Said kompresor menanggung X stroke
C - Mengindikasikan seri mesin oktagonal kompresor Brilliant
3.2 - Mengatakan motor rated power (HP)
Z- Mengatakan pada suhu rendah, mesin suhu tinggi G-, DS-low temperature bipolar
Tipe minyak R-Refrigeration: Minyak E-Eester (R404A, R134A, R407c) Minyak mineral R-R22, R502)
Kami dapat menyediakan lebih banyak model sebagai berikut:
Model | Daya / hp | Pemindahan | KW / HP |
YBF2CC-3.2 | 2 × Φ55 × 39.3mm | 16.24m³ / h | 2.2KW / 3HP |
YBF2CC-4.2 | 2 × Φ55 × 39.3mm | 16.24m³ / h | 2.9KW / 4HP |
YBF4FC-3.2ZR | 4 × Φ41 × 39.3mm | 18.05m³ / h | 2.2KW / 3HP |
YBF4EC-4.2ZR | 4 × Φ46 × 39.3mm | 22.72m³ / h | 3KW / 4HP |
YBF4DC-5.2ZR | 4 × Φ50 × 39.3mm | 26.84m³ / h | 3.7KW / 5HP |
YBF4CC-6.2ZR | 4 × Φ55 × 39.3mm | 32.48m³ / h | 4.4KW / 6HP |
YBF4FC-5.2GR | 4 × Φ41 × 39.3mm | 18.05m³ / h | 3.7KW / 5HP |
YBF4EC-6.2GR | 4 × Φ46 × 39.3mm | 22.72m³ / h | 4.4KW / 6HP |
YBF4DC-7.2GR | 4 × Φ50 × 39.3mm | 26.84m³ / h | 5.1KW / 7HP |
YBF4CC-9.2GR | 4 × Φ55 × 39.3mm | 32.48m³ / h | 6.6KW / 9HP |
YBF4VCS-6.2ZR | 4 × Φ55 × 42mm | 34.73m³ / h | 4.4KW / 6HP |
YBF4TCS-8.2ZR | 4 × Φ60 × 42mm | 41.33m³ / h | 5.5KW / 8HP |
YBF4PCS-10.2ZR | 4 × Φ65 × 42mm | 48.50m³ / h | 7.5KW / 10HP |
YBF4NCS-12.2ZR | 4 × Φ70 × 42mm | 56.25m³ / h | 8.8KW / 12HP |
YBF4VCS-10.2GR | 4 × Φ55 × 42mm | 34.73m³ / h | 7.5KW / 10HP |
YBF4TCS-12.2GR | 4 × Φ60 × 42mm | 41.33m³ / h | 8.8KW / 12HP |
YBF4PCS-15.2GR | 4 × Φ65 × 42mm | 48.50m³ / h | 10.5KW / 15HP |
YBF4NCS-20.2GR | 4 × Φ70 × 42mm | 56.25m³ / h | 15KW / 20HP |
YBF4G-20.2ZR | 4 × Φ75 × 55mm | 84.5m³ / h | 15KW / 20HP |
YBF4H-15.2ZR | 4 × Φ70 × 55mm | 73.6m³ / h | 10.5KW / 15HP |
YBF4G-30.2GR | 4 × Φ75 × 55mm | 84.5m³ / h | 22KW / 30HP |
YBF4H-25.2GR | 4 × Φ70 × 55mm | 73.6m³ / h | 18.5KW / 25HP |
YBF6H-25.2ZR | 6 × Φ 70 × 55mm | 110.5m³ / h | 18.5KW / 25HP |
YBF6G-30.2ZR | 6 × Φ75 × 55mm | 126.8m³ / h | 22KW / 30HP |
YBF6F-40.2ZR | 6 × Φ82 × 55mm | 151.6m³ / jam | 30KW / 40HP |
YBF6H-35.2GR | 6 × Φ 70 × 55mm | 110.5m³ / h | 26KW / 35HP |
YBF6G-40.2GR | 6 × Φ75 × 55mm | 126.8m³ / h | 30KW / 40HP |
YBF6F-50.2GR | 6 × Φ82 × 55mm | 151.6m³ / h | 37KW / 50HP |
|
|
