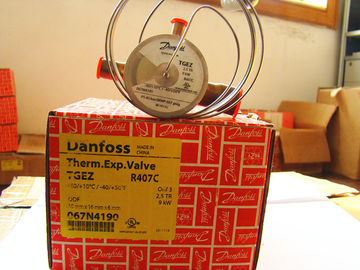

TGEZ Series Thermostatic Valves / Refrigeration Expansion Valves R407c TGEZ 067N4160

Spesifikasi:

1. Regriratant: R22 / R404A / R507
2. Katup ekspansi termostatik mengatur aliran cairan refrigeran ke evaporator.
3. Aliran yang dikontrol oleh katup adalah bola lampu termal yang dilekatkan ke saluran isap di outlet evaporator.
4. The Bulb termal merasakan panas evaporator dan menyesuaikan katup untuk menerima cairan Cairan sesuai dengan beban pendingin.

• ETS serangkaian katup ekspansi elektronik digunakan dalam sistem pendingin udara dan pendingin, memiliki kontrol yang tepat terhadap suplai cairan ke volume evaporator.
• Penempatan linier steker katup dan dirancang untuk mencapai keseimbangan, tidak hanya untuk memberikan keseimbangan aliran dua arah, tapi juga untuk mendapatkan fungsi tertutup dua arah, seperti katup solenoid.

• TYPE Qnom.TR	Kapasitas Nominal (Kw)	Koneksi ODF * ODF (inci)	Kode No.
  TGEX 10
  TGEX3	10	3/8 * 5/8	067N2150
  TGEX3	10	1/2 * 5/8	067N2151
  TGEX4	14	1/2 * 7/8	067N2152
  TGEX6	20	1/2 * 5/8	067N2153
  TGEX6	20	1/2 * 7/8	067N2154
  TGEX6	20	5/8 * 7/8	067N2155
  TGEX7.5	27	5/8 * 7/8	067N2156
  TGEX11	38	5/8 * 7/8	067N2157
  TGEX11	38	5/8 * 1 1/8	067N2158
  TGEX 20
  TGEX12	43	5/8 * 7/8	067N2159
  TGEX12	43	5/8 * 1 1/8	067N2160
  TGEX15	54	5/8 * 1 1/8	067N2161
  TGEX15	54	7/8 * 1/8	067N2162
  TGEX18	63	7/8 * 1/8	067N2163
  TGEX18	63	7/8 * 1 3/8	067N2164
  TGE40
  TGEX26	92	7/8 * 1 3/8	067N2165
  TGEX26	92	1 1/8 * 1 3/8	067N2166
  TGEX30	104	7/8 * 1 3/8	067N2167
  TGEX30	104	1 1/8 * 1 3/8	067N2168
  TGEX38	104	1 1/8 * 1 3/8	067N2169
  TGEZ 12	42	5/8 × 7/8	067N4159
  TGEZ 12	42	5/8 × 11/8	067N4160
  TGEZ 15	53	5/8 × 11/8	067N4161
  TGEZ 15	53	7/8 × 11/8	067N4162
  TGEZ 18	62	7/8 × 11/8	067N4163
  TGEZ 18	62	7/8 × 13/8	067N4164
  TGEZ 2.5	9	3/8 × 5/8	067N4150
  TGEZ 2.5	9	1/2 × 5/8	067N4151
  TGEZ 3.5	13	1/2 × 7/8	067N4152
  TGEZ 5	19	1/2 × 5/8	067N4153
  TGEZ 5	19	1/2 × 7/8	067N4154
  TGEZ 5	19	5/8 × 7/8	067N4155
  TGEZ 7	25	5/8 × 7/8	067N4156
  TGEZ 10	36	5/8 × 7/8	067N4157
  TGEZ 10	36	5/8 × 11/8	067N4158
  TGEZ 24	84	7/8 × 13/8	067N4165
  TGEZ 24	84	11/8 × 13/8	067N4166
  TGEZ 27	95	7/8 × 13/8	067N4167
  TGEZ 27	95	11/8 × 13/8	067N4168
  TGEZ 34	121	11/8 × 13/8	067N4169

• Jenis katup	Pendingin	Tekanan (1/4 in / mm)	Tabung kapiler (mm)	Kode no. (Tanpa MOP)
  TEX5	R22	Ext.	3	067B3250
  TEX12				067B3210
  TEX20				067B3274
  TEX55				067G3205
  TES5	R404a			067B3342
  TES12				067B3347
  TES20				067B3352
  TES55				067G3302

  Kode	Mengetik
  068Z7008	TEB 2 flare × flare connection
  068Z7009	TEB 2 flare × flare connection
  068Z3174	TEB 2 flare × solder connection
  068Z3518	TEB 2 flare × solder connection
  068Z7012	TEB 2 flare × solder connection
  068Z3348	SEPULUH 2 flare × flare connection
  068Z3349	SEPULUH 2 flare × flare connection
  068Z3370	SEPULUH 2 flare × flare connection
  068Z3392	SEPULUH 2 flare × flare connection
  068Z3385	SEPULUH 2 flare × solder connection
  068Z3386	SEPULUH 2 flare × solder connection
  068Z3389	SEPULUH 2 flare × solder connection
  068Z3390	SEPULUH 2 flare × solder connection
  068Z3403	TES 2 flare × flare connection
  068Z3404	TES 2 flare × flare connection
  068Z3405	TES 2 flare × flare connection
  068Z3407	TES 2 flare × flare connection
  068Z3409	TES 2 flare × flare connection
  068Z3411	TES 2 flare × flare connection
  068Z3415	TES 2 flare × solder connection
  068Z3417	TES 2 flare × solder connection
  068Z3419	TES 2 flare × solder connection
  068Z3421	TES 2 flare × solder connection
  068Z3422	TES 2 flare × solder connection
  068Z3424	TES 2 flare × solder connection
  068Z3426	TES 2 flare × solder connection
  068Z3428	TES 2 flare × solder connection
  068Z3430	TES 2 flare × solder connection
  068Z3437	TES 2 flare × solder connection
  068Z3209	TEX 2 flare × flare connection
  068Z3210	TEX 2 flare × flare connection
  068Z3211	TEX 2 flare × flare connection
  068Z3225	TEX 2 flare × flare connection
  068Z3227	TEX 2 flare × flare connection
  068Z3229	TEX 2 flare × flare connection
  068Z3277	TEX 2 flare × solder connection
  068Z3284	TEX 2 flare × solder connection
  068Z3290	TEX 2 flare × solder connection
  Katup ekspansi Kode	Mengetik
  068Z3305	TEX 2 flare × solder connection
  068Z3311	TEX 2 flare × solder connection
  068Z3320	TEX 2 flare × solder connection
  068Z3359	TEX 2 flare × solder connection
  068Z3363	TEX 2 flare × solder connection
  068Z3367	TEX 2 flare × solder connection
  068Z3501	TEZ 2 flare × flare connection
  068Z3517	TEZ 2 flare × flare connection
  068Z3446	TEZ 2 flare × solder connection
  068Z3447	TEZ 2 flare × solder connection
  068Z3503	TEZ 2 flare × solder connection
  068Z3515	TEZ 2 flare × solder connection
  068Z3346	TN 2 flare × flare connection
  068Z3347	TN 2 flare × flare connection
  068Z3369	TN 2 flare × flare connection
  068Z3393	TN 2 flare × flare connection
  068Z3383	TN 2 flare × solder connection
  068Z3384	TN 2 flare × solder connection
  068Z3387	TN 2 flare × solder connection
  068Z3388	TN 2 flare × solder connection
  068Z3400	TS 2 flare × flare connection
  068Z3401	TS 2 flare × flare connection
  068Z3402	TS 2 flare × flare connection
  068Z3406	TS 2 flare × flare connection
  068Z3408	TS 2 flare × flare connection
  068Z3410	TS 2 flare × flare connection
  068Z3414	Koneksi TS 2 flare × solder
  068Z3416	Koneksi TS 2 flare × solder
  068Z3418	Koneksi TS 2 flare × solder
  068Z3420	Koneksi TS 2 flare × solder
  068Z3423	Koneksi TS 2 flare × solder
  068Z3425	Koneksi TS 2 flare × solder
  068Z3427	Koneksi TS 2 flare × solder
  068Z3429	Koneksi TS 2 flare × solder
  068Z3435	Koneksi TS 2 flare × solder
  068Z3436	Koneksi TS 2 flare × solder
  068Z3206	TX 2 flare × flare connection
  068Z3207	TX 2 flare × flare connection
  068Z3208	TX 2 flare × flare connection
  068Z3224	TX 2 flare × flare connection
  068Z3226	TX 2 flare × flare connection
  068Z3228	TX 2 flare × flare connection
  068Z3276	TX 2 flare × solder koneksi
  068Z3281	TX 2 flare × solder koneksi
  068Z3287	TX 2 flare × solder koneksi
  068Z3302	TX 2 flare × solder koneksi
  068Z3308	TX 2 flare × solder koneksi
  068Z3319	TX 2 flare × solder koneksi
  068Z3357	TX 2 flare × solder koneksi
  068Z3361	TX 2 flare × solder koneksi

• Kode	Mengetik
  T2
  068-2002	Rakitan perakitan nomor0X
  068-2003	Rakitan rakitan nomor00
  068-2090	Rakitan rakitan nomor00
  068-2010	Perakitan rakitan nomor01
  068-2091	Perakitan rakitan nomor01
  068-2015	Perakitan rakitan number02
  068-2092	Perakitan rakitan number02
  068-2006	Perakitan rakitan number03
  068-2093	Perakitan rakitan number03
  068-2007	Perakitan rakitan number04
  068-2094	Perakitan rakitan number04
  068-2008	Perakitan rakitan number05
  068-2095	Perakitan rakitan number05
  068-2009	Rakitan rakitan nomor06
  068-2096	Rakitan rakitan nomor06
  068-2089	Rakitan perakitan nomor0X
