DSL30 Dual Airflow Cold Room Evaporator

Name: DSL30 Dual Airflow Cold Room Evaporator
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DSL-6.2/30
Price: 5,000.00 USD
Availability: InStock

Nama merek:	Ruifujie
Nomor Model:	DSL-6.2/30
Moq:	1
harga:	Discussed
Waktu Pengiriman:	1 bulan
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Model:

DSL-6.2/30

Kapasitas Pendinginan Nominal:

6.2Kw

Area yang Cocok:

30㎡

Kekuatan kipas:

140W

Aplikasi:

Ruangan Dingin, Freezer

MOQ:

1set

Jaminan:

1 tahun

Sedang mengemas:

Pengemasan Kayu

Kemasan rincian:

kotak kayu

Menyediakan kemampuan:

-50℃～+85℃

Menyoroti:

DSL30 cold room evaporator

dual airflow refrigeration evaporator

cold room evaporator with warranty

Deskripsi Produk

DSL30 Dual Airflow Cold Room Evaporator

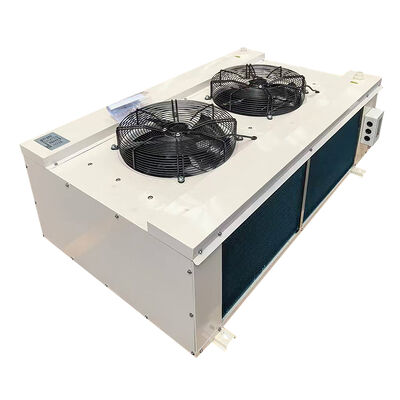

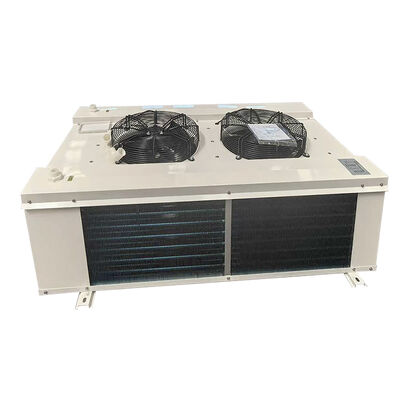

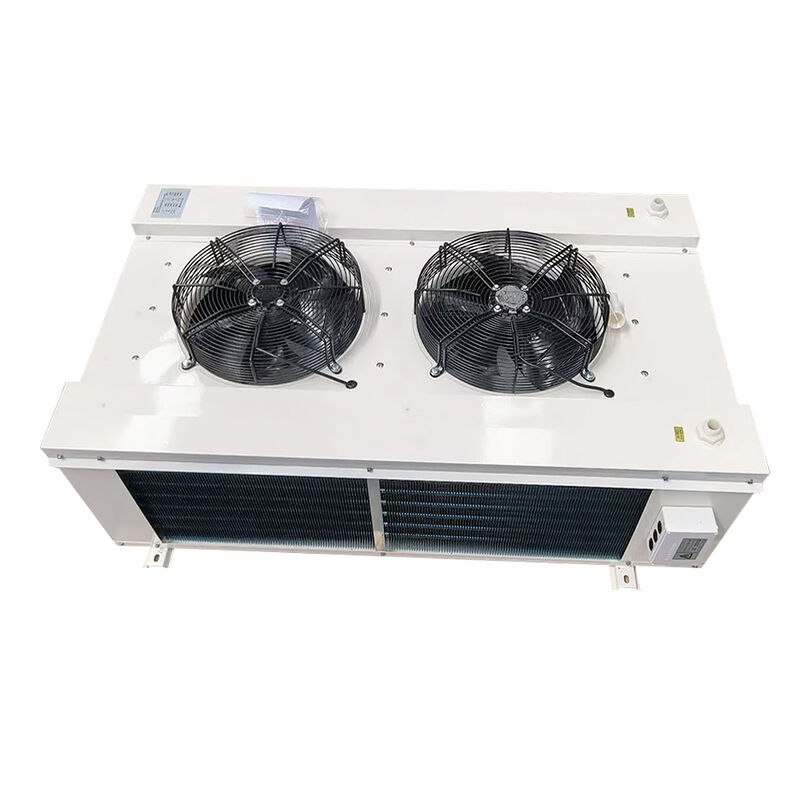

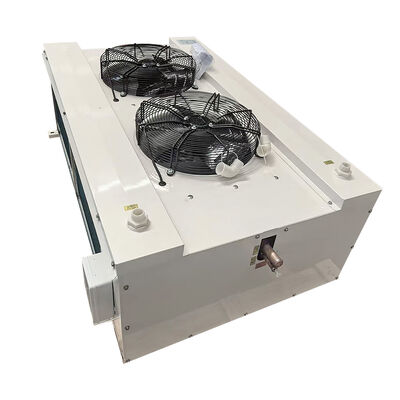

The DSL-6.2/30 dual airflow cold room evaporator is a compact ceiling-mounted air cooler engineered for medium-sized medium-temperature cold storage applications, including fruit and vegetable preservation warehouses, small food processing plants, and commercial cold chain facilities.

Product Advantages

With a nominal cooling capacity of 6200W and dual-outlet design delivering 2×2290m³/h airflow, this evaporator eliminates temperature dead zones common in single-outlet systems, maintaining uniform temperatures across the entire storage space and reducing product dehydration.

Medium-sized cold storage facilities often face challenges with uneven airflow distribution creating temperature variations and quality inconsistencies, along with rapid frost buildup on evaporator coils due to moderate humidity levels. The DSL-6.2/30 addresses these issues with balanced dual-outlet airflow and optimized 4.5mm fin design, minimizing temperature fluctuations and reducing defrost cycle frequency.

Constructed with high-purity copper heat exchange tubes and anti-corrosion aluminum fins with 4.5mm spacing, this DSL-series air cooler features excellent heat transfer efficiency and rust resistance, optimized for continuous operation in medium-temperature environments. The 4.5mm fin spacing balances airflow efficiency and anti-frost performance, reducing ice buildup even in moderate-humidity conditions. Compatible with mainstream refrigerants including R22, R404A, and R134A, it supports flexible system matching. The compact ceiling-mounted structure maximizes usable floor space, while the integrated dual 1600W defrost system prevents ice blockages in both coil and drain pan, simplifying routine maintenance.

Technical Specifications

Model	DSL-6.2/30
Nominal Cooling Capacity	6200 W
Heat Exchange Area	30 ㎡
Tube Volume	5.3 L
Inlet & Outlet Pipe Diameter	φ16 mm / φ22 mm
Coil Defrosting Power	1600 W
Water Dish Defrosting Power	1600 W

Company Profile

Ruifujie is a leading modern refrigeration manufacturer with over 20 years of specialized experience in the global cold chain industry. Our comprehensive product portfolio includes scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, along with supporting cold room units, quick-freezing equipment, and ice making machines.

We provide full-range OEM and ODM customization services to meet the diverse and personalized needs of clients worldwide. Our products are widely exported to Russia, the United Kingdom and the United Arab Emirates. Backed by advanced production technology, strict quality control, and competitive pricing, we have built long-term stable partnerships with global buyers and earned consistent positive feedback from overseas customers.

Packaging and Shipping

Frequently Asked Questions

What benefits does the dual-outlet design offer for medium-sized cold storage?

The dual-outlet airflow eliminates temperature dead zones common in single-outlet systems, ensuring uniform cooling across the entire storage space and reducing product dehydration caused by uneven temperatures.

How does the 4.5mm fin spacing improve performance in medium-temperature environments?

The 4.5mm fin spacing balances airflow efficiency and anti-frost performance, reducing rapid ice buildup on the coil surface and maintaining consistent cooling efficiency in moderate-humidity conditions.

What advantages does the dual defrost system provide in continuous medium-temperature operation?

The integrated coil and water dish defrost heaters deliver thorough, balanced defrosting, preventing ice blockages in both the coil and drain pan, reducing maintenance frequency and supporting stable continuous operation.

What is your policy for sample orders of refrigeration equipment?

Samples are charged, and the sample fee will be refunded after the bulk order meets the requirements.

What trade terms do you support for international orders?

We support FOB Shenzhen and EXW trade terms, with settlement in US dollars.
